Android編程實現QQ表情的發送和接收完整實例(附源碼)

本文實例講述了Android編程實現QQ表情的發送和接收。分享給大家供大家參考，具體如下：

在自己做一個聊天應用練習的時候，需要用到表情，於是就想著模仿一下QQ表情，圖片資源完全copy的QQ.apk，解壓就可以得到，這裡不細說。

下面將該應用中的表情模塊功能抽離出來，以便自己以後復習回顧。。

先看一下效果圖：

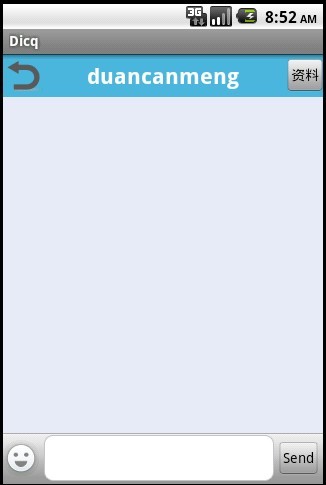

首先進入界面：（完全仿照QQ）

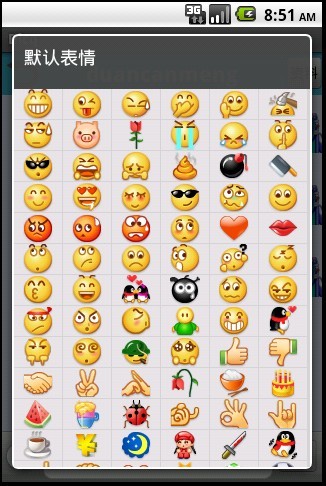

點擊一下上面的表情圖標：

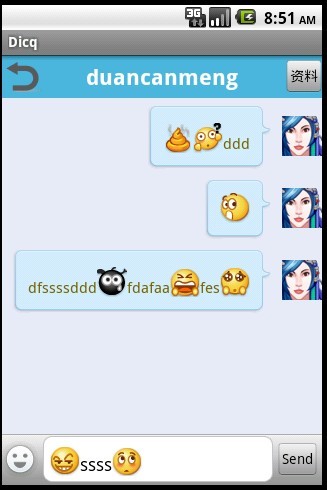

選擇一些表情，輸入一些文字混合：

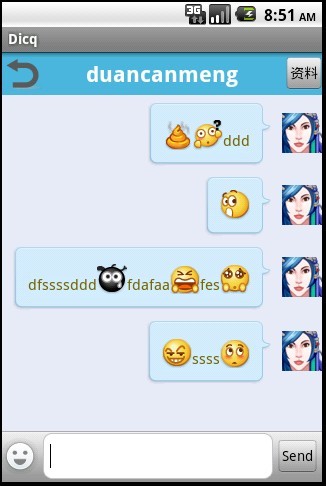

點擊發送：

可以看到文字和表情圖片都一起顯示出來了。

下面列出一些關鍵代碼：

表情工具類ExpressionUtil:

public class ExpressionUtil {
 /**
  * 對spanableString進行正則判斷，如果符合要求，則以表情圖片代替
  * @param context
  * @param spannableString
  * @param patten
  * @param start
  * @throws SecurityException
  * @throws NoSuchFieldException
  * @throws NumberFormatException
  * @throws IllegalArgumentException
  * @throws IllegalAccessException
  */
 public static void dealExpression(Context context,SpannableString spannableString, Pattern patten, int start) throws SecurityException, NoSuchFieldException, NumberFormatException, IllegalArgumentException, IllegalAccessException {
  Matcher matcher = patten.matcher(spannableString);
  while (matcher.find()) {
   String key = matcher.group();
   if (matcher.start() < start) {
    continue;
   }
   Field field = R.drawable.class.getDeclaredField(key);
   int resId = Integer.parseInt(field.get(null).toString()); //通過上面匹配得到的字符串來生成圖片資源id
   if (resId != 0) {
    Bitmap bitmap = BitmapFactory.decodeResource(context.getResources(), resId);
    ImageSpan imageSpan = new ImageSpan(bitmap); //通過圖片資源id來得到bitmap，用一個ImageSpan來包裝
    int end = matcher.start() + key.length(); //計算該圖片名字的長度，也就是要替換的字符串的長度
    spannableString.setSpan(imageSpan, matcher.start(), end, Spannable.SPAN_INCLUSIVE_EXCLUSIVE); //將該圖片替換字符串中規定的位置中
    if (end < spannableString.length()) { //如果整個字符串還未驗證完，則繼續。。
     dealExpression(context,spannableString, patten, end);
    }
    break;
   }
  }
 }
 /**
  * 得到一個SpanableString對象，通過傳入的字符串,並進行正則判斷
  * @param context
  * @param str
  * @return
  */
 public static SpannableString getExpressionString(Context context,String str,String zhengze){
  SpannableString spannableString = new SpannableString(str);
  Pattern sinaPatten = Pattern.compile(zhengze, Pattern.CASE_INSENSITIVE);  //通過傳入的正則表達式來生成一個pattern
  try {
   dealExpression(context,spannableString, sinaPatten, 0);
  } catch (Exception e) {
   Log.e("dealExpression", e.getMessage());
  }
  return spannableString;
 }
}

在顯示聊天頁面的list的適配器中，我們需要做如下的顯示，即調用上面工具類的方法：

SimpleChatAdapter中的內部類ViewHolder：

private class ViewHolder{
  RelativeLayout chat_layout;
  ImageView image;
  TextView text;
  public ViewHolder(View convertView){
   chat_layout=(RelativeLayout) convertView.findViewById(R.id.team_singlechat_id_listiteam);
   image=(ImageView) convertView.findViewById(R.id.team_singlechat_id_listiteam_headicon);
   text=(TextView) convertView.findViewById(R.id.team_singlechat_id_listiteam_message);
  }
  public void setData(MessageInfo msg){
   RelativeLayout.LayoutParams rl_chat_left=((RelativeLayout.LayoutParams)chat_layout.getLayoutParams());
   RelativeLayout.LayoutParams rl_tv_msg_left=((RelativeLayout.LayoutParams)text.getLayoutParams());
   RelativeLayout.LayoutParams rl_iv_headicon_left=((RelativeLayout.LayoutParams)image.getLayoutParams());
   if(!DicqConstant.DEFAULTMAC.equalsIgnoreCase(msg.getUsermac())){ //根據本地的mac地址來判斷該條信息是屬於本人所說還是對方所說
   //如果是自己說的，則顯示在右邊；如果是對方所說，則顯示在左邊
    rl_chat_left.addRule(RelativeLayout.ALIGN_PARENT_LEFT,-1);
    rl_chat_left.addRule(RelativeLayout.ALIGN_PARENT_RIGHT,0);
    rl_iv_headicon_left.addRule(RelativeLayout.ALIGN_PARENT_LEFT,-1);
    rl_iv_headicon_left.addRule(RelativeLayout.ALIGN_PARENT_RIGHT,0);
    rl_tv_msg_left.addRule(RelativeLayout.RIGHT_OF,R.id.team_singlechat_id_listiteam_headicon);
    rl_tv_msg_left.addRule(RelativeLayout.LEFT_OF,0);
    text.setBackgroundResource(R.drawable.balloon_l_selector);
   }else{
    rl_chat_left.addRule(RelativeLayout.ALIGN_PARENT_LEFT,0);
    rl_chat_left.addRule(RelativeLayout.ALIGN_PARENT_RIGHT,-1);
    rl_iv_headicon_left.addRule(RelativeLayout.ALIGN_PARENT_LEFT,0);
    rl_iv_headicon_left.addRule(RelativeLayout.ALIGN_PARENT_RIGHT,-1);
    rl_tv_msg_left.addRule(RelativeLayout.RIGHT_OF,0);
    rl_tv_msg_left.addRule(RelativeLayout.LEFT_OF,R.id.team_singlechat_id_listiteam_headicon);
    text.setBackgroundResource(R.drawable.balloon_r_selector);
   }
   image.setImageResource(PrortaitUtils.conversionIdToRes(msg.getProtrait()));  //設置頭像
   String str = msg.getMsg(); //消息具體內容
   String zhengze = "f0[0-9]{2}|f10[0-7]"; //正則表達式，用來判斷消息內是否有表情
   try {
    SpannableString spannableString = ExpressionUtil.getExpressionString(context, str, zhengze);
    text.setText(spannableString);
   } catch (NumberFormatException e) {
    e.printStackTrace();
   } catch (SecurityException e) {
    e.printStackTrace();
   } catch (IllegalArgumentException e) {
    e.printStackTrace();
   }
  }
}

關於表情彈出框的實現如下：

MainActivity：

/**
* 創建一個表情選擇對話框
*/
private void createExpressionDialog() {
  builder = new Dialog(MainActivity.this);
  GridView gridView = createGridView();
  builder.setContentView(gridView);
  builder.setTitle("默認表情");
  builder.show();
  gridView.setOnItemClickListener(new OnItemClickListener() {
   @Override
   public void onItemClick(AdapterView<?> arg0, View arg1, int arg2,
     long arg3) {
    Bitmap bitmap = null;
    bitmap = BitmapFactory.decodeResource(getResources(), imageIds[arg2 % imageIds.length]);
    ImageSpan imageSpan = new ImageSpan(MainActivity.this, bitmap);
    String str = null;
    if(arg2<10){
     str = "f00"+arg2;
    }else if(arg2<100){
     str = "f0"+arg2;
    }else{
     str = "f"+arg2;
    }
    SpannableString spannableString = new SpannableString(str);
    spannableString.setSpan(imageSpan, 0, 4, Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);
    edit.append(spannableString);
    builder.dismiss();
   }
  });
}
/**
* 生成一個表情對話框中的gridview
* @return
*/
private GridView createGridView() {
  final GridView view = new GridView(this);
  List<Map<String,Object>> listItems = new ArrayList<Map<String,Object>>();
  //生成107個表情的id，封裝
  for(int i = 0; i < 107; i++){
   try {
    if(i<10){
     Field field = R.drawable.class.getDeclaredField("f00" + i);
     int resourceId = Integer.parseInt(field.get(null).toString());
     imageIds[i] = resourceId;
    }else if(i<100){
     Field field = R.drawable.class.getDeclaredField("f0" + i);
     int resourceId = Integer.parseInt(field.get(null).toString());
     imageIds[i] = resourceId;
    }else{
     Field field = R.drawable.class.getDeclaredField("f" + i);
     int resourceId = Integer.parseInt(field.get(null).toString());
     imageIds[i] = resourceId;
    }
   } catch (NumberFormatException e) {
    e.printStackTrace();
   } catch (SecurityException e) {
    e.printStackTrace();
   } catch (IllegalArgumentException e) {
    e.printStackTrace();
   } catch (NoSuchFieldException e) {
    e.printStackTrace();
   } catch (IllegalAccessException e) {
    e.printStackTrace();
   }
   Map<String,Object> listItem = new HashMap<String,Object>();
   listItem.put("image", imageIds[i]);
   listItems.add(listItem);
  }
  SimpleAdapter simpleAdapter = new SimpleAdapter(this, listItems, R.layout.team_layout_single_expression_cell, new String[]{"image"}, new int[]{R.id.image});
  view.setAdapter(simpleAdapter);
  view.setNumColumns(6);
  view.setBackgroundColor(Color.rgb(214, 211, 214));
  view.setHorizontalSpacing(1);
  view.setVerticalSpacing(1);
  view.setLayoutParams(new LayoutParams(LayoutParams.FILL_PARENT,LayoutParams.WRAP_CONTENT));
  view.setGravity(Gravity.CENTER);
  return view;
}

完整實例代碼代碼點擊此處本站下載。

希望本文所述對大家Android程序設計有所幫助。
