VLC for Android 基於 Opencv 對 RTSP視頻 實時人臉檢測

最近項目上需要在Android客戶端 通過獲取 RTSP 的視頻進行實時人臉檢測， 要做就就是以下幾點：
1、通過VLC 獲取 獲取RTSP
2、對VLC中播放的視頻進行實時截屏並保存在SD卡中
3、用opencv對截屏後的文件進行 人臉檢測
4、用截取到的人臉顯示在主界面上

我在網上找到了一個公共的RTSP地址，作為RTSP視頻數據源
先看看VLC獲取RTSP效果：
vce1xMv1wtTNvL7Nyse92MbBuvO1xMv1wtTNvKOs0tG+rbGjtObU2lNEv6jW0MHLoaM8L3A+DQrXoqO60vLOqrmrv6q1xFJUU1DW0MO709DIy8Gzo6zL+dLU1rvE3NPD0rvVxc28xqzX986qsuLK1A0KPHA+v7S/tMjLwbO87LLitcTQp7n7o7o8YnIgLz4NCjxpbWcgYWx0PQ=="這裡寫圖片描述" src="/uploadfile/Collfiles/20160908/20160908091845356.jpg" title="\" />

測試的原圖是：

//VLC中將視頻幀截取出來，並保存在SD卡中
//String picPath = snapShot(); // 一號位
//將圖片轉化為Bitmap對象後
//Bitmap oldBitmap = getFramePicture(picPath); //二號位
Bitmap oldBitmap = BitmapFactory.decodeResource(getResources(), R.drawable.timg); //三號位
//對保存在本地的圖片進行人臉檢測，並獲取截到的所有人臉
final List faces = mFaceUtil.detectFrame(oldBitmap);

注：在測試的時候，把上面代碼中的 一號位 和二號位的注釋去掉， 並且注釋掉三號位，這樣就會對截屏後的圖片直接進行人臉檢測了。

一、搭建環境

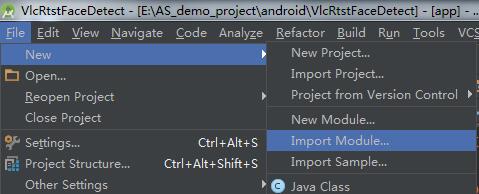

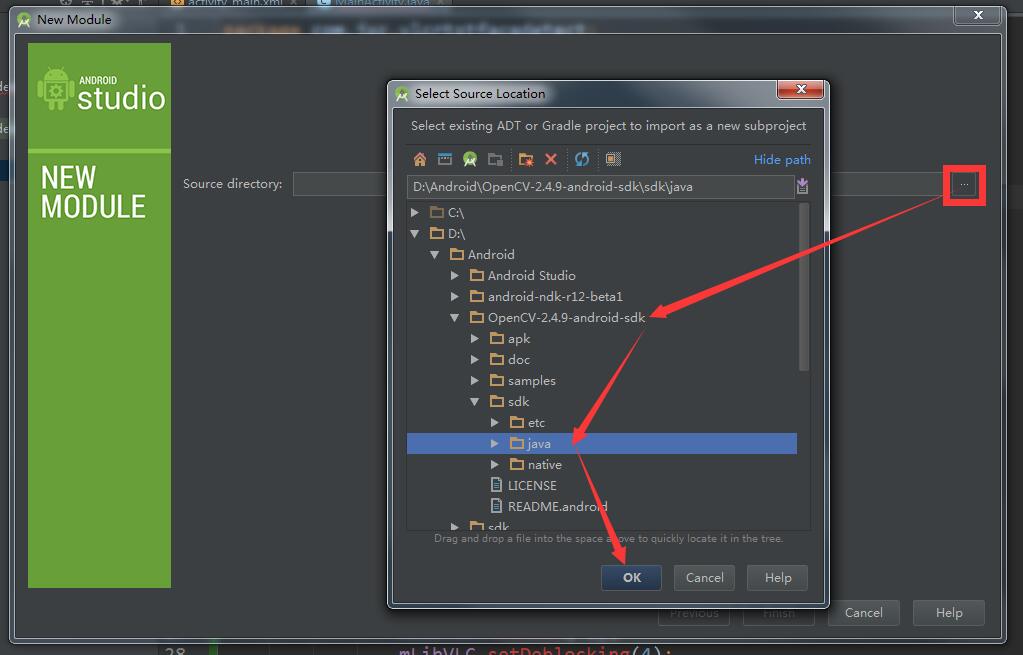

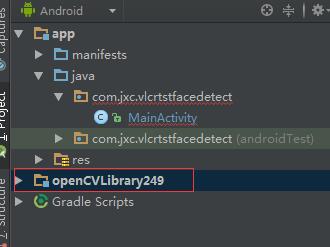

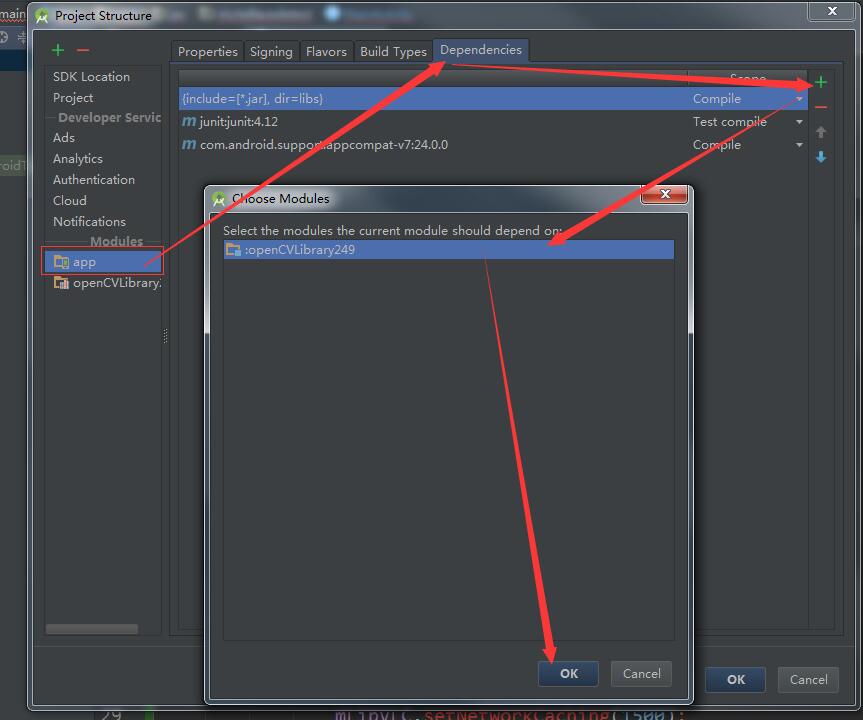

1、將OpenCV 作為Model導入項目中（我用的版本是2.4.9）

注意，這裡的java文件夾，我也會放到上傳的壓縮包裡，可以直接按照同樣的方式，導入Model

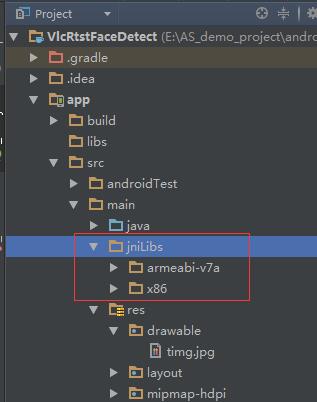

2、將Opencv中和VLC的so庫復制進去，直接將我項目裡的jniLibs文件夾復制到指定main文件夾下就可以了

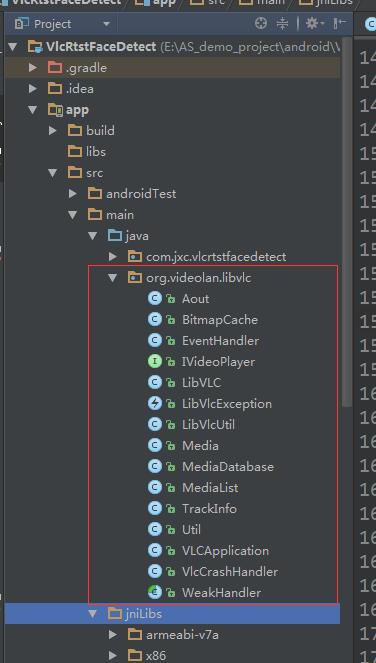

3、將VLC中要用到的代碼拷貝到項目裡（直接從我項目裡拷貝即可，也可以自己去官網下載）

4、配置一下AndroidManifest.xml

這樣就配置的差不多了。

二、VLC獲取RTSP網絡視頻

public class MainActivity extends Activity {

    private static final String TAG = "MainActivity";
    private VideoPlayerFragment fragment;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        fragment = new VideoPlayerFragment();
        //-------------
        //  其他代碼
        //-------------
        try {
            EventHandler em = EventHandler.getInstance();
            em.addHandler(handler);
            LibVLC mLibVLC = Util.getLibVlcInstance();
            if (mLibVLC != null) {
                mLibVLC.setSubtitlesEncoding("");
                mLibVLC.setTimeStretching(false);
                mLibVLC.setFrameSkip(true);
                mLibVLC.setChroma("RV32");
                mLibVLC.setVerboseMode(true);
                mLibVLC.setAout(-1);
                mLibVLC.setDeblocking(4);
                mLibVLC.setNetworkCaching(1500);
                //測試地址
//                String pathUri = "rtsp://218.204.223.237:554/live/1/66251FC11353191F/e7ooqwcfbqjoo80j.sdp";
                String pathUri = "rtsp://218.204.223.237:554/live/1/67A7572844E51A64/f68g2mj7wjua3la7.sdp";
                mLibVLC.playMyMRL(pathUri);
            }
        } catch (LibVlcException e) {
            e.printStackTrace();
        }
    }

    Handler handler = new Handler() {
        public void handleMessage(Message msg) {
            Log.d(TAG, "Event = " + msg.getData().getInt("event"));
            switch (msg.getData().getInt("event")) {
                case EventHandler.MediaPlayerPlaying:
                case EventHandler.MediaPlayerPaused:
                    break;
                case EventHandler.MediaPlayerStopped:
                    break;
                case EventHandler.MediaPlayerEndReached:
                    break;
                case EventHandler.MediaPlayerVout:
                    if (msg.getData().getInt("data") > 0) {
                        FragmentTransaction transaction = getFragmentManager().beginTransaction();
                        transaction.add(R.id.frame_layout, fragment);
                        transaction.commit();
                    }
                    break;
                case EventHandler.MediaPlayerPositionChanged:
                    break;
                case EventHandler.MediaPlayerEncounteredError:
                    AlertDialog dialog = new AlertDialog.Builder(MainActivity.this)
                            .setTitle("提示信息")
                            .setMessage("無法連接到網絡攝像頭，請確保手機已經連接到攝像頭所在的wifi熱點")
                            .setNegativeButton("知道了", new DialogInterface.OnClickListener() {
                                @Override
                                public void onClick(DialogInterface dialogInterface, int i) {
                                    finish();
                                }
                            }).create();
                    dialog.setCanceledOnTouchOutside(false);
                    dialog.show();
                    break;
                default:
                    Log.d(TAG, "Event not handled ");
                    break;
            }
        }
    };
}

這裡的作用就是先初始化一下VLC，然後判斷能否加載到RTSP視頻，如果加載不到，就應該是 你的安卓手機 和 拍攝RTSP的攝像頭 不處於同一個網絡下， 這個需要自行處理，一般連接同一個WIFI就可以了。 我這裡的測試地址是 網上公開的，大家都可以獲取到RTSP視頻的。

三 、對獲取到的RTSP進行截屏並保存

public class VideoPlayerFragment extends Fragment implements IVideoPlayer {
    public final static String TAG = "VideoPlayerFragment";

    private SurfaceHolder surfaceHolder = null;
    private LibVLC mLibVLC = null;

    private int mVideoHeight;
    private int mVideoWidth;
    private int mSarDen;
    private int mSarNum;
    private int mUiVisibility = -1;
    private static final int SURFACE_SIZE = 3;

    private SurfaceView surfaceView = null;
    private FaceRtspUtil mFaceUtil;
    //截圖後的圖片的寬度
    private static final int PIC_WIDTH = 1280;
    //截圖後的圖片的高度
    private static final int PIC_HEIGHT = 720;
    private String mPicCachePath;
    private Timer mTimer;

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
        //存放VLC的截屏圖片的文件夾路徑
        View view = inflater.inflate(R.layout.video_player, null);
        init(view);
        if (Util.isICSOrLater())
            getActivity().getWindow().getDecorView().findViewById(android.R.id.content)
                    .setOnSystemUiVisibilityChangeListener(
                            new OnSystemUiVisibilityChangeListener() {

                                @Override
                                public void onSystemUiVisibilityChange(
                                        int visibility) {
                                    if (visibility == mUiVisibility)
                                        return;
                                    setSurfaceSize(mVideoWidth, mVideoHeight,
                                            mSarNum, mSarDen);
                                    if (visibility == View.SYSTEM_UI_FLAG_VISIBLE) {
                                        Log.d(TAG, "onSystemUiVisibilityChange");
                                    }
                                    mUiVisibility = visibility;
                                }
                            });

        try {
            mLibVLC = LibVLC.getInstance();
            if (mLibVLC != null) {
                EventHandler em = EventHandler.getInstance();
                em.addHandler(eventHandler);
            }
        } catch (LibVlcException e) {
            e.printStackTrace();
            Log.i(TAG, "onCreateView: " + e.getMessage());
        }
        return view;
    }

    @Override
    public void onStart() {
        super.onStart();
        if (!mLibVLC.isPlaying()) {
            mLibVLC.play();
        }
    }

    @Override
    public void onPause() {
        super.onPause();
        mLibVLC.stop();
        mTimer.cancel();
    }

    private CascadeClassifier initializeOpenCVDependencies() {
        CascadeClassifier classifier = null;
        try {
            InputStream is = getResources().openRawResource(R.raw.haarcascade_frontalface_alt);
            File cascadeDir = getActivity().getDir("cascade", Context.MODE_PRIVATE);
            File mCascadeFile = new File(cascadeDir, "haarcascade_frontalface_alt.xml");
            FileOutputStream fos = new FileOutputStream(mCascadeFile);

            byte[] bytes = new byte[4096];
            int len;
            while ((len = is.read(bytes)) != -1) {
                fos.write(bytes, 0, len);
            }
            is.close();
            fos.close();
            classifier = new CascadeClassifier(mCascadeFile.getAbsolutePath());
        } catch (Exception e) {
            e.printStackTrace();
            Log.e(TAG, "Error loading cascade", e);
        }
        return classifier;
    }

    @Override
    public void onResume() {
        super.onResume();
        if (!OpenCVLoader.initDebug()) {
            Log.e(TAG, "OpenCV init error");
        }
        CascadeClassifier classifier = initializeOpenCVDependencies();
        mFaceUtil = new FaceRtspUtil(classifier, PIC_WIDTH, PIC_HEIGHT);

        mTimer = new Timer();
        //開啟一個定時器，每隔一秒截屏檢測一次
        mTimer.schedule(new TimerTask() {
            @Override
            public void run() {
                //VLC中將視頻幀截取出來，並保存在SD卡中
//                String picPath = snapShot();
//
//                //將圖片轉化為Bitmap對象後
//                Bitmap oldBitmap = getFramePicture(picPath);

                Bitmap oldBitmap = BitmapFactory.decodeResource(getResources(), R.drawable.timg);
                //對保存在本地的圖片進行人臉檢測，並獲取截到的所有人臉
                final List faces = mFaceUtil.detectFrame(oldBitmap);
                if (faces == null || faces.isEmpty()) {
                    return;
                }
                getActivity().runOnUiThread(new Runnable() {
                    @Override
                    public void run() {
                        callBack.pushData(faces);
                    }
                });
            }
        }, 1000, 1000);
    }

    /**
     * 初始化組件
     */
    private void init(View view) {
        surfaceView = (SurfaceView) view.findViewById(R.id.main_surface);
        surfaceHolder = surfaceView.getHolder();
        surfaceHolder.setFormat(PixelFormat.RGBX_8888);
        surfaceHolder.addCallback(mSurfaceCallback);

        mPicCachePath = getSDPath() + "/FaceTest/";

        File file = new File(mPicCachePath);
        if (!file.exists()) {
            file.mkdirs();
        }
    }

    /**
     * 截圖
     */
    private String snapShot() {
        try {
            String name = mPicCachePath + System.currentTimeMillis() + ".jpg";
            //調用LibVlc的截屏功能，傳入一個路徑，及圖片的寬高
            if (mLibVLC.takeSnapShot(name, PIC_WIDTH, PIC_HEIGHT)) {
                Log.i(TAG, "snapShot: 保存成功--" + System.currentTimeMillis());
                return name;
            }
            Log.i(TAG, "snapShot: 保存失敗");
        } catch (Exception e) {
            e.printStackTrace();
        }
        return null;
    }

    /**
     * 傳入文件路徑，獲取bitmap
     *
     * @param path 路徑
     */
    private Bitmap getFramePicture(String path) {
        if (TextUtils.isEmpty(path) || mFaceUtil == null) {
            Log.i(TAG, "faceDetect: 文件路徑為空|| mFaceUtil == null");
            return null;
        }
        File file = new File(path);
        if (!file.exists()) {
            return null;
        }
        return file2Bitmap(file);
    }

    private RtspCallBack callBack;

    public void setRtspCallBack(RtspCallBack callBack) {
        this.callBack = callBack;
    }

    public interface RtspCallBack {
        void pushData(List faces);
    }

    @Override
    public void onConfigurationChanged(Configuration newConfig) {
        setSurfaceSize(mVideoWidth, mVideoHeight, mSarNum, mSarDen);
        super.onConfigurationChanged(newConfig);
    }

    /**
     * attach and disattach surface to the lib
     */
    private final Callback mSurfaceCallback = new Callback() {
        @Override
        public void surfaceChanged(SurfaceHolder holder, int format, int width,
                                   int height) {
            if (format == PixelFormat.RGBX_8888)
                Log.d(TAG, "Pixel format is RGBX_8888");
            else if (format == PixelFormat.RGB_565)
                Log.d(TAG, "Pixel format is RGB_565");
            else if (format == ImageFormat.YV12)
                Log.d(TAG, "Pixel format is YV12");
            else
                Log.d(TAG, "Pixel format is other/unknown");
            mLibVLC.attachSurface(holder.getSurface(),
                    VideoPlayerFragment.this);
        }

        @Override
        public void surfaceCreated(SurfaceHolder holder) {
        }

        @Override
        public void surfaceDestroyed(SurfaceHolder holder) {
            mLibVLC.detachSurface();
        }
    };

    public final Handler mHandler = new VideoPlayerHandler(this);

    private static class VideoPlayerHandler extends
            WeakHandler {
        public VideoPlayerHandler(VideoPlayerFragment owner) {
            super(owner);
        }

        @Override
        public void handleMessage(Message msg) {
            VideoPlayerFragment activity = getOwner();
            if (activity == null) // WeakReference could be GC'ed early
                return;

            switch (msg.what) {
                case SURFACE_SIZE:
                    activity.changeSurfaceSize();
                    break;
            }
        }
    }

    private void changeSurfaceSize() {
        // get screen size
        int dw = getActivity().getWindow().getDecorView().getWidth();
        int dh = getActivity().getWindow().getDecorView().getHeight();

        // getWindow().getDecorView() doesn't always take orientation into
        // account, we have to correct the values
        boolean isPortrait = getResources().getConfiguration().orientation == Configuration.ORIENTATION_PORTRAIT;
        if (dw > dh && isPortrait || dw < dh && !isPortrait) {
            int d = dw;
            dw = dh;
            dh = d;
        }
        if (dw * dh == 0)
            return;
        // compute the aspect ratio
        double ar, vw;
        double density = (double) mSarNum / (double) mSarDen;
        if (density == 1.0) {
            /* No indication about the density, assuming 1:1 */
            ar = (double) mVideoWidth / (double) mVideoHeight;
        } else {
            /* Use the specified aspect ratio */
            vw = mVideoWidth * density;
            ar = vw / mVideoHeight;
        }

        // compute the display aspect ratio
        double dar = (double) dw / (double) dh;
        if (dar < ar)
            dh = (int) (dw / ar);
        else
            dw = (int) (dh * ar);

        surfaceHolder.setFixedSize(mVideoWidth, mVideoHeight);
        LayoutParams lp = surfaceView.getLayoutParams();
        lp.width = dw;
        lp.height = dh;
        surfaceView.setLayoutParams(lp);
        surfaceView.invalidate();
    }

    private final Handler eventHandler = new VideoPlayerEventHandler(this);

    private static class VideoPlayerEventHandler extends
            WeakHandler {
        public VideoPlayerEventHandler(VideoPlayerFragment owner) {
            super(owner);
        }

        @Override
        public void handleMessage(Message msg) {
            VideoPlayerFragment activity = getOwner();
            if (activity == null)
                return;
            Log.d(TAG, "Event = " + msg.getData().getInt("event"));
            switch (msg.getData().getInt("event")) {
                case EventHandler.MediaPlayerPlaying:
                    Log.i(TAG, "MediaPlayerPlaying");
                    break;
                case EventHandler.MediaPlayerPaused:
                    Log.i(TAG, "MediaPlayerPaused");
                    break;
                case EventHandler.MediaPlayerStopped:
                    Log.i(TAG, "MediaPlayerStopped");
                    break;
                case EventHandler.MediaPlayerEndReached:
                    Log.i(TAG, "MediaPlayerEndReached");
                    activity.getActivity().finish();
                    break;
                case EventHandler.MediaPlayerVout:
                    activity.getActivity().finish();
                    break;
                default:
                    Log.d(TAG, "Event not handled");
                    break;
            }
        }
    }

    @Override
    public void onDestroy() {
        if (mLibVLC != null) {
            mLibVLC.stop();
        }
        EventHandler em = EventHandler.getInstance();
        em.removeHandler(eventHandler);
        super.onDestroy();
    }

    public void setSurfaceSize(int width, int height, int sar_num, int sar_den) {
        if (width * height == 0)
            return;

        mVideoHeight = height;
        mVideoWidth = width;
        mSarNum = sar_num;
        mSarDen = sar_den;
        Message msg = mHandler.obtainMessage(SURFACE_SIZE);
        mHandler.sendMessage(msg);
    }

    @Override
    public void setSurfaceSize(int width, int height, int visible_width,
                               int visible_height, int sar_num, int sar_den) {
        mVideoHeight = height;
        mVideoWidth = width;
        mSarNum = sar_num;
        mSarDen = sar_den;
        Message msg = mHandler.obtainMessage(SURFACE_SIZE);
        mHandler.sendMessage(msg);
    }

    private String getSDPath() {
        boolean hasSDCard = Environment.getExternalStorageState().equals(Environment.MEDIA_MOUNTED);
        if (hasSDCard) {
            return Environment.getExternalStorageDirectory().toString();
        } else
            return Environment.getDownloadCacheDirectory().toString();
    }

    private Bitmap file2Bitmap(File file) {
        if (file == null) {
            return null;
        }
        try {
            FileInputStream fis = new FileInputStream(file);
            return BitmapFactory.decodeStream(fis);
        } catch (FileNotFoundException e) {
            e.printStackTrace();
        }
        return null;
    }
}

主要看 onResume 方法
1、初始化opencv：OpenCVLoader.initDebug()
2、初始化用於人臉檢測的分類級聯器：
CascadeClassifier classifier = initializeOpenCVDependencies();
3、然後創建一個定時器，每個1秒截屏檢測一次
mTimer = new Timer();
mTimer.schedule(….);

四、人臉檢測

public class FaceRtspUtil {

    private static final String TAG = "FaceUtil";
    private Mat grayscaleImage;
    private CascadeClassifier cascadeClassifier = null;

    public FaceRtspUtil(CascadeClassifier cascadeClassifier, int width, int height) {
        this.cascadeClassifier = cascadeClassifier;
        //人臉的寬高最小也要是原圖的height的 10%
        grayscaleImage = new Mat(height, width, CvType.CV_8UC4);
    }

    /**
     * 給一個圖片，檢測這張圖片裡是否有人臉
     *
     * @param oldBitmap 圖片
     * @return 返回一個List集合，裡面存放所有檢測到的人臉
     */
    public List detectFrame(Bitmap oldBitmap) {

        Mat aInputFrame = new Mat();

        if (oldBitmap == null) {
            return null;
        }
        Utils.bitmapToMat(oldBitmap, aInputFrame);
        if (grayscaleImage == null) {
            Log.i(TAG, "detectFrame: aInputFrame == null || grayscaleImage == null");
            return null;
        }
        Imgproc.cvtColor(aInputFrame, grayscaleImage, Imgproc.COLOR_RGBA2RGB);

        MatOfRect faces = new MatOfRect();

        // 使用級聯分類器 檢測人臉
        if (cascadeClassifier != null) {
            //不獲取60*60以下的人臉
            cascadeClassifier.detectMultiScale(grayscaleImage, faces, 1.1, 2, 2,
                    new Size(60, 60), new Size());
        }
        //facesArray裡保存所有檢測到的人臉的位置及大小
        Rect[] facesArray = faces.toArray();
        if (facesArray == null || facesArray.length == 0) {
            //如果沒有人臉，直接退出
            Log.i(TAG, "detectFrame: 該圖片中沒有人臉");
            return null;
        }
        //保存該幀中的所有人臉
        List bitmaps = new ArrayList<>();

        Bitmap tmpBitmap = Bitmap.createBitmap(aInputFrame.width(), aInputFrame.height(), Bitmap.Config.RGB_565);
        Utils.matToBitmap(aInputFrame, tmpBitmap);

        for (Rect aFacesArray : facesArray) {
            Bitmap bitmap = Bitmap.createBitmap(tmpBitmap, aFacesArray.x, aFacesArray.y,
                    aFacesArray.width, aFacesArray.height);
            bitmaps.add(bitmap);
        }
        //回收幀圖片
        tmpBitmap.recycle();
        return bitmaps;
    }
}

傳入一張圖片，返回 臉的List集合

五、顯示檢測到的人臉

這裡我們使用 接口回調 的方法將人臉 從Fragment中傳到Activity去
在Activity中接收到人臉以後，創建ImageView將人臉顯示出來

final LinearLayout ll_faces = (LinearLayout) findViewById(R.id.ll_faces);

fragment.setRtspCallBack(new VideoPlayerFragment.RtspCallBack() {
            @Override
            public void pushData(final List faces) {
                //清除所有的子View
                ll_faces.removeAllViews();
                for (int i = 0; i < faces.size(); i++) {
                    ImageView image = new ImageView(MainActivity.this);
                    image.setImageBitmap(faces.get(i));
                    LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(-2, -2);
                    ll_faces.addView(image, params);
                }
            }
        });

至此，基本就弄完了
