看了很長時間Vold存儲模塊的相關知識，也深入的研究一段時間的Android源碼，打算把自己看過的經驗之貼、參考資料和自己的一些見解，以帖子的形式發出來，供有興趣的同仁們參考，有不對的地方請指正，我們相互交流。

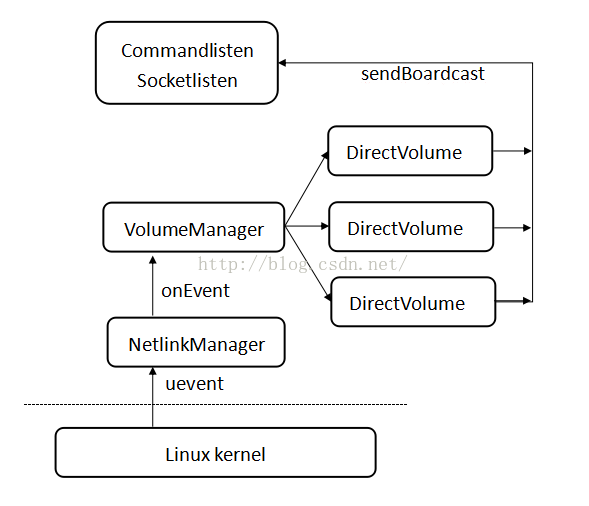

從上圖中可知：
· Vold中的NetlinkManager模塊接收來自Linux內核的uevent消息。例如SD卡的插拔等動作都會引起Kernel向NM發送uevent消息。
· NetlinkManager將這些消息轉發給VolumeManager模塊。VolumeManager會對應做一些操作，然後把相關信息通過CommandListener發送給MountService，MountService根據收到的消息會發送相關的處理命令給VolumeManager做進一步的處理。例如待SD卡插入後，VolumeManager會將來自NetlinkManager的“Disk Insert”消息發送給MountService，而後MountService則發送“Mount”指令給Vold，指示它掛載這個SD卡。
· CommandListener模塊內部封裝了一個Socket用於跨進程通信。它在Vold進程中屬於監聽端（即是服務端），而它的連接端（即客戶端）則是MountService。它一方面接收來自MountService的控制命令（例如卸載存儲卡、格式化存儲卡等），另一方面VolumeManager和NetlinkManager模塊又會通過它，將一些信息發送給MountService。
下面來初步的認識Vold，代碼在system\vold\main.cpp
int main() {
mkdir("/dev/block/vold", 0755); //創建一個目錄/dev/block/vold
//創建一個VolumeManager對象，該對象為單例模式
if (!(vm = VolumeManager::Instance())) {
SLOGE("Unable to create VolumeManager");
exit(1);
};
//創建一個NetlinkManager對象，該對象為單例模式
if (!(nm = NetlinkManager::Instance())) {
SLOGE("Unable to create NetlinkManager");
exit(1);
};
//創建一個CommandListener對象
cl = new CommandListener();
vm->setBroadcaster((SocketListener *) cl);
nm->setBroadcaster((SocketListener *) cl);
//啟動VolumeManager
if (vm->start()) {
SLOGE("Unable to start VolumeManager (%s)", strerror(errno));
exit(1);
}
//根據fstab配置文件初始化VolumeManager
if (process_config(vm)) {
SLOGE("Error reading configuration (%s)... continuing anyways", strerror(errno));
}
//啟動NetlinkManager對象
if (nm->start()) {
SLOGE("Unable to start NetlinkManager (%s)", strerror(errno));
exit(1);
}
//通過往/sys/block目錄下對應的uevent文件寫“add\n”來觸發內核發送Uevent消息
coldboot("/sys/block");
//啟動CommandListener
if (cl->startListener()) {
SLOGE("Unable to start CommandListener (%s)", strerror(errno));
exit(1);
}
}

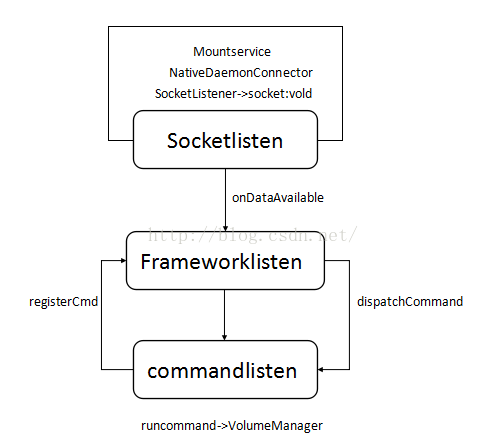

上圖中的虛線為啟動是的調用流程。 (1) class NetlinkManager(在其start函數中創建了NetlinkHandler對象，並把創建的socket作為參數)
(2)class NetlinkHandler: public NetlinkListener(實現了onEvent) (3) class NetlinkListener : public SocketListener (實現了onDataAvailable) (4) class SocketListener(實現了runListener，在一個線程中通過select查看哪些socket有數據，通過onDataAvailable來讀取數據)
int NetlinkManager::start() {
struct sockaddr_nl nladdr;
int sz = 64 * 1024;
int on = 1;
memset(&nladdr, 0, sizeof(nladdr));
nladdr.nl_family = AF_NETLINK;
nladdr.nl_pid = getpid();
nladdr.nl_groups = 0xffffffff;
// 創建一個socket用於內核空間和用戶空間的異步通信，監控系統的hotplug事件
if ((mSock = socket(PF_NETLINK,
SOCK_DGRAM,NETLINK_KOBJECT_UEVENT)) < 0) {
SLOGE("Unable to create uevent socket: %s", strerror(errno));
return -1;
}
if (setsockopt(mSock, SOL_SOCKET, SO_RCVBUFFORCE, &sz, sizeof(sz)) < 0) {
SLOGE("Unable to set uevent socket SO_RECBUFFORCE option: %s", strerror(errno));
return -1;
}
if (setsockopt(mSock, SOL_SOCKET, SO_PASSCRED, &on, sizeof(on)) < 0) {
SLOGE("Unable to set uevent socket SO_PASSCRED option: %s", strerror(errno));
return -1;
}
if (bind(mSock, (struct sockaddr *) &nladdr, sizeof(nladdr)) < 0) {
SLOGE("Unable to bind uevent socket: %s", strerror(errno));
return -1;
}
// 利用新創建的socket實例化一個NetlinkHandler類對象，NetlinkHandler繼承了類NetlinkListener，
// NetlinkListener又繼承了類SocketListener
mHandler = new NetlinkHandler(mSock);
if (mHandler->start()) { //啟動NetlinkHandler
SLOGE("Unable to start NetlinkHandler: %s", strerror(errno));
return -1;
}
return 0;
}
NetlinkHandler構造
NetlinkHandler::NetlinkHandler(int listenerSocket) :
NetlinkListener(listenerSocket) {
}
繼承父類
NetlinkListener::NetlinkListener(int socket) :
SocketListener(socket, false) {
mFormat = NETLINK_FORMAT_ASCII;
}
這裡又是構造了一個SockListener的實例，傳入了上面創建的socket標識。
接著調用的start()函數，也是最終實現在SockListener的startListener()。
int NetlinkHandler::start() {
return this->startListener();
}
int SocketListener::startListener() {
if (!mSocketName && mSock == -1) {
SLOGE("Failed to start unbound listener");
errno = EINVAL;
return -1;
} else if (mSocketName) {
if ((mSock = android_get_control_socket(mSocketName)) < 0) {
SLOGE("Obtaining file descriptor socket '%s' failed: %s",
mSocketName, strerror(errno));
return -1;
}
}
if (mListen && listen(mSock, 4) < 0) {
SLOGE("Unable to listen on socket (%s)", strerror(errno));
return -1;
} else if (!mListen)
mClients->push_back(new SocketClient(mSock, false));
if (pipe(mCtrlPipe)) {
SLOGE("pipe failed (%s)", strerror(errno));
return -1;
}
if (pthread_create(&mThread, NULL, SocketListener::threadStart, this)) {
SLOGE("pthread_create (%s)", strerror(errno));
return -1;
}
return 0;
}
void *SocketListener::threadStart(void *obj) {
SocketListener *me = reinterpret_cast(obj);
me->runListener();
pthread_exit(NULL);
return NULL;
}
void SocketListener::runListener() {
SocketClientCollection *pendingList = new SocketClientCollection();
while(1) { // 死循環，一直監聽
SocketClientCollection::iterator it;
fd_set read_fds;
int rc = 0;
int max = -1;
FD_ZERO(&read_fds); //清空文件描述符集read_fds
if (mListen) {
max = mSock;
FD_SET(mSock, &read_fds); //添加文件描述符到文件描述符集read_fds
}
FD_SET(mCtrlPipe[0], &read_fds); //添加管道的讀取端文件描述符到read_fds
if (mCtrlPipe[0] > max)
max = mCtrlPipe[0];
pthread_mutex_lock(&mClientsLock); //對容器mClients的操作需要加鎖
for (it = mClients->begin(); it != mClients->end(); ++it) {
int fd = (*it)->getSocket();
FD_SET(fd, &read_fds); ////遍歷容器mClients的所有成員，調用內聯函數getSocket()獲取文件描述符，並添加到文件描述符集read_fds
if (fd > max)
max = fd;
}
pthread_mutex_unlock(&mClientsLock);
// 等待文件描述符中某一文件描述符或者說socket有數據到來
if ((rc = select(max + 1, &read_fds, NULL, NULL, NULL)) < 0) {
if (errno == EINTR)
continue;
SLOGE("select failed (%s)", strerror(errno));
sleep(1);
continue;
} else if (!rc)
continue;
if (FD_ISSET(mCtrlPipe[0], &read_fds))
break;
if (mListen && FD_ISSET(mSock, &read_fds)) { //監聽套接字處理
struct sockaddr addr;
socklen_t alen;
int c;
do {
alen = sizeof(addr);
c = accept(mSock, &addr, &alen); //接收鏈接請求，建立連接，如果成功c即為建立鏈接後的數據交換套接字,將其添加到mClient容器
} while (c < 0 && errno == EINTR);
if (c < 0) {
SLOGE("accept failed (%s)", strerror(errno));
sleep(1);
continue;
}
pthread_mutex_lock(&mClientsLock);
mClients->push_back(new SocketClient(c, true));
pthread_mutex_unlock(&mClientsLock);
}
/* Add all active clients to the pending list first */
pendingList->clear();
pthread_mutex_lock(&mClientsLock);
for (it = mClients->begin(); it != mClients->end(); ++it) {
int fd = (*it)->getSocket();
if (FD_ISSET(fd, &read_fds)) {
pendingList->push_back(*it);
}
}
pthread_mutex_unlock(&mClientsLock);
/* Process the pending list, since it is owned by the thread,
* there is no need to lock it */
while (!pendingList->empty()) { //非監聽套接字處理
/* Pop the first item from the list */
it = pendingList->begin();
SocketClient* c = *it;
pendingList->erase(it);
/* Process it, if false is returned and our sockets are
* connection-based, remove and destroy it */
// ****** onDataAvailable在NetlinkListener中實現*********
if (!onDataAvailable(c) && mListen) {
/* Remove the client from our array */
pthread_mutex_lock(&mClientsLock);
for (it = mClients->begin(); it != mClients->end(); ++it) {
if (*it == c) {
mClients->erase(it);
break;
}
}
pthread_mutex_unlock(&mClientsLock);
/* Remove our reference to the client */
c->decRef();
}
}
}
delete pendingList;
}
SocketListener::runListener是線程真正執行的函數：mListen成員用來判定是否監聽套接字，Netlink套接字屬於udp套接字，非監聽套接字，該函數的主要功能體現在，如果該套接字有數據到來，就調用函數onDataAvailable讀取數據
bool NetlinkListener::onDataAvailable(SocketClient *cli)
{
int socket = cli->getSocket();
ssize_t count;
uid_t uid = -1;
count = TEMP_FAILURE_RETRY(uevent_kernel_multicast_uid_recv(
socket, mBuffer, sizeof(mBuffer), &uid)); //從socket中讀取event信息
if (count < 0) {
if (uid > 0)
LOG_EVENT_INT(65537, uid);
SLOGE("recvmsg failed (%s)", strerror(errno));
return false;
}
NetlinkEvent *evt = new NetlinkEvent();
if (!evt->decode(mBuffer, count, mFormat)) { //調用NetlinkEvent解析event
SLOGE("Error decoding NetlinkEvent");
} else {
onEvent(evt); //傳遞event給子類NetlinkHandler處理
}
delete evt;
return true;
}
到NetlinkHandler.cpp中：
void NetlinkHandler::onEvent(NetlinkEvent *evt) {
VolumeManager *vm = VolumeManager::Instance();
const char *subsys = evt->getSubsystem();
if (!subsys) {
SLOGW("No subsystem found in netlink event");
return;
}
if (!strcmp(subsys, "block")) { //EVENT為block類型
int action = evt->getAction();
vm->updatePullOutState(evt);
vm->setHotPlug(true);
vm->handleBlockEvent(evt); //把event交給VolumeManager處理
vm->setHotPlug(false);
}
調用Instance創建一個VM對象。
調用setBroadcaster設置CL對象
調用start啟動VM。
調用process_config配置VM。
VolumeManager *VolumeManager::Instance() {
if (!sInstance)
sInstance = new VolumeManager();
return sInstance;
}
VolumeManager::VolumeManager() {
mDebug = false;
mVolumes = new VolumeCollection(); //一個容器，保存Volume的集合
mActiveContainers = new AsecIdCollection();
mBroadcaster = NULL; //指向socketlisten，用於發送掛載事件
mUmsSharingCount = 0;
mSavedDirtyRatio = -1;
mUmsDirtyRatio = dirtyRatio();
mVolManagerDisabled = 0;
mIsHotPlug= false;
mUseBackupContainers =false;
mIsFirstBoot = false;
mIpoState = State_Ipo_Start;
}
int VolumeManager::start() {
return 0; //VM的啟動什麼也沒有做
}
static int process_config(VolumeManager *vm)
{
char fstab_filename[PROPERTY_VALUE_MAX + sizeof(FSTAB_PREFIX)];
fstab = fs_mgr_read_fstab(fstab_filename); //讀取fstab文件
if (!fstab) {
SLOGE("failed to open %s\n", fstab_filename);
return -1;
}
/* Loop through entries looking for ones that vold manages */
for (i = 0; i < fstab->num_entries; i++) {
if (fs_mgr_is_voldmanaged(&fstab->recs[i])) {
DirectVolume *dv = NULL;
flags = 0;
/* Set any flags that might be set for this volume */
if (fs_mgr_is_nonremovable(&fstab->recs[i])) {
flags |= VOL_NONREMOVABLE;
}
if (fs_mgr_is_encryptable(&fstab->recs[i])) {
flags |= VOL_ENCRYPTABLE;
}
/* Only set this flag if there is not an emulated sd card */
if (fs_mgr_is_noemulatedsd(&fstab->recs[i]) &&
!strcmp(fstab->recs[i].fs_type, "vfat")) {
flags |= VOL_PROVIDES_ASEC;
}
dv = new DirectVolume(vm, &(fstab->recs[i]), flags);
if (dv->addPath(fstab->recs[i].blk_device)) {
SLOGE("Failed to add devpath %s to volume %s",
fstab->recs[i].blk_device, fstab->recs[i].label);
goto out_fail;
}
vm->addVolume(dv); //添加到volumemanager容器
}
}
}
fstab配置文件
# Android fstab file. ## The filesystem that contains the filesystem checker binary (typically /system) cannot # specify MF_CHECK, and must come before any filesystems that do specify MF_CHECK /devices/platform/mtk-msdc.0/mmc_host auto vfat defaults voldmanaged=sdcard0:emmc@fat,noemulatedsd /devices/platform/mtk-msdc.1/mmc_host auto vfat defaults voldmanaged=sdcard1:auto
DirectVolume::DirectVolume(VolumeManager *vm,const char *label,
const char*mount_point, int partIdx) :
Volume(vm, label, mount_point) {//初始化基類
/*
注意其中的參數：
label為”sdcard”,mount_point為”/mnt/sdcard”,partIdx為1
*/
mPartIdx = partIdx;
//PathCollection定義為typedef android::List PathCollection
//其實就是一個字符串list
mPaths= new PathCollection();
for(int i = 0; i < MAX_PARTITIONS; i++)
mPartMinors[i] = -1;
mPendingPartMap = 0;
mDiskMajor = -1; //存儲設備的主設備號
mDiskMinor = -1; //存儲設備的次設備號，一個存儲設備將由主次兩個設備號標識。
mDiskNumParts = 0;
//設置狀態為NoMedia
setState(Volume::State_NoMedia);
}
//再來看addPath函數，它主要目的是添加設備在sysfs中的路徑，
int DirectVolume::addPath(const char *path) {
mPaths->push_back(strdup(path));
return0;
}
addPath把和某個存儲卡接口相關的設備路徑與這個DirectVolume綁定到一起，並且這個設備路徑和Uevent中的DEVPATH是對應的，這樣就可以根據Uevent的DEVPATH找到是哪個存儲卡的DirectVolume發生了變動。當然手機上目前只有一個存儲卡接口，所以Vold也只有一個DirectVolume。
void VolumeManager::handleBlockEvent(NetlinkEvent*evt) {
constchar *devpath = evt->findParam("DEVPATH");
/*
前面在process_config中構造的DirectVolume對象保存在了mVolumes中，它的定義如下：
typedef android::ListVolumeCollection，也是一個列表。
注意它保存的是Volume指針，而我們的DirectVolume是從Volume派生的
*/
VolumeCollection::iterator it;
boolhit = false;
for (it = mVolumes->begin(); it !=mVolumes->end(); ++it) {
//調用每個Volume的handleBlockEvent事件，實際上將調用
//DirectVolume的handleBlockEvent函數。
if(!(*it)->handleBlockEvent(evt)) {
hit = true;
break;
}
}
}
int DirectVolume::handleBlockEvent(NetlinkEvent*evt) {
constchar *dp = evt->findParam("DEVPATH");
PathCollection::iterator it;
//將Uevent的DEVPATH和addPath添加的路徑進行對比，判斷屬不屬於自己管理的范圍。
for(it = mPaths->begin(); it != mPaths->end(); ++it) {
if(!strncmp(dp, *it, strlen(*it))) {
int action = evt->getAction();
const char *devtype = evt->findParam("DEVTYPE");
if (action == NetlinkEvent::NlActionAdd) {
int major = atoi(evt->findParam("MAJOR"));
int minor = atoi(evt->findParam("MINOR"));
char nodepath[255];
snprintf(nodepath,
sizeof(nodepath),"/dev/block/vold/%d:%d",
major, minor);
//創建設備節點
if (createDeviceNode(nodepath, major, minor)) {
......
}
if (!strcmp(devtype, "disk")) {
handleDiskAdded(dp, evt);//添加一個磁盤
} else {
/*
對於有分區的SD卡，先收到上面的“disk”消息，然後每個分區就會收到
一個分區添加消息。
*/
handlePartitionAdded(dp,evt);
}
} else if (action == NetlinkEvent::NlActionRemove) {
......
} else if (action == NetlinkEvent::NlActionChange) {
......
}
......
return 0;
}
}
errno= ENODEV;
return-1;
}
cl = new CommandListener();
vm->setBroadcaster((SocketListener *) cl);
nm->setBroadcaster((SocketListener *) cl);
...
/*
* Now that we're up, we can respond to commands
*/
if (cl->startListener()) {
SLOGE("Unable to start CommandListener (%s)", strerror(errno));
exit(1);
}
構造函數/system/vold/CommandListener.cpp
CommandListener::CommandListener() :
FrameworkListener("vold", true) {
registerCmd(new DumpCmd());
registerCmd(new VolumeCmd());
registerCmd(new AsecCmd());
registerCmd(new ObbCmd());
registerCmd(new StorageCmd());
registerCmd(new XwarpCmd());
registerCmd(new CryptfsCmd());
registerCmd(new FstrimCmd());
//M{
#ifndef MTK_EMULATOR_SUPPORT
registerCmd(new USBCmd());
#endif
registerCmd(new CDROMCmd());
//}M
#if defined (ENG_BUILD_ENG)
registerCmd(new SilkRoad());
#endif
}
構造一個父類FrameworkListener
FrameworkListener::FrameworkListener(const char *socketName, bool withSeq) :
SocketListener(socketName, true, withSeq) {
init(socketName, withSeq);
}
void FrameworkListener::init(const char *socketName, bool withSeq) {
mCommands = new FrameworkCommandCollection();
errorRate = 0;
mCommandCount = 0;
mWithSeq = withSeq;
}
SocketListener::SocketListener(const char *socketName, bool listen, bool useCmdNum) {
init(socketName, -1, listen, useCmdNum);
}
void SocketListener::init(const char *socketName, int socketFd, bool listen, bool useCmdNum) {
mListen = listen;
mSocketName = socketName;
mSock = socketFd;
mUseCmdNum = useCmdNum;
pthread_mutex_init(&mClientsLock, NULL);
mClients = new SocketClientCollection();
}
void FrameworkListener::registerCmd(FrameworkCommand *cmd) {
mCommands->push_back(cmd);
}
CommandListener::VolumeCmd::VolumeCmd() :
VoldCommand("volume") {
}
VoldCommand::VoldCommand(const char *cmd) :
FrameworkCommand(cmd) {
}
FrameworkCommand::FrameworkCommand(const char *cmd) {
mCommand = cmd;
}
將volume這個command注冊到mCommands這個容器中之後，目的是當FrameworkListerer從SlocketListener接收到command的時候，會依據mCommands 中的command進行解析篩選判斷分發，調用對應的command執行類
int SocketListener::startListener() {
if (!mSocketName && mSock == -1) {
SLOGE("Failed to start unbound listener");
errno = EINVAL;
return -1;
} else if (mSocketName) {
if ((mSock = android_get_control_socket(mSocketName)) < 0) {//獲取socket的文件描述符，這裡是獲取Vold這個socket的
SLOGE("Obtaining file descriptor socket '%s' failed: %s",
mSocketName, strerror(errno));
return -1;
}
SLOGV("got mSock = %d for %s", mSock, mSocketName);
}
if (mListen && listen(mSock, 4) < 0) {
SLOGE("Unable to listen on socket (%s)", strerror(errno));
return -1;
} else if (!mListen)//是否正常監聽socket
mClients->push_back(new SocketClient(mSock, false, mUseCmdNum));
if (pipe(mCtrlPipe)) {//新建管道，保存文件描述符到數組
SLOGE("pipe failed (%s)", strerror(errno));
return -1;
}
if (pthread_create(&mThread, NULL, SocketListener::threadStart, this)) {//開了一個線程來處理
SLOGE("pthread_create (%s)", strerror(errno));
return -1;
}
return 0;
}
開啟線程用於監聽
void *SocketListener::threadStart(void *obj) {
SocketListener *me = reinterpret_cast(obj);//threadStart為static函數，上面開線程創建的時候傳了this，這裡需要轉換一個一樣bit位的SocketListener指針
me->runListener();//SocketListener真正的執行函數
pthread_exit(NULL);
return NULL;
}
對socket監聽處理
void SocketListener::runListener() {
SocketClientCollection *pendingList = new SocketClientCollection();//暫存mClients中的SocketClient
while(1) {
SocketClientCollection::iterator it;
fd_set read_fds;
int rc = 0;
int max = -1;
FD_ZERO(&read_fds);//清空文件描述符集read_fds
if (mListen) {
max = mSock;
FD_SET(mSock, &read_fds);//如果正常的監聽，這裡就把之前獲得的vold的文件描述符添加進去
}
FD_SET(mCtrlPipe[0], &read_fds);//添加管道讀取端的文件描述符
if (mCtrlPipe[0] > max)
max = mCtrlPipe[0];
pthread_mutex_lock(&mClientsLock);//加鎖操作，多線程安全
for (it = mClients->begin(); it != mClients->end(); ++it) {//遍歷mClients，獲取fd 添加到read_fds
int fd = (*it)->getSocket();
FD_SET(fd, &read_fds);
if (fd > max)
max = fd;
}
pthread_mutex_unlock(&mClientsLock);//解鎖
SLOGV("mListen=%d, max=%d, mSocketName=%s", mListen, max, mSocketName);
//linux下socket編程的select，這裡檢測read_fds集合裡面是否有可讀的，也就是有沒有數據過來，沒有數據的文件描述符會從read_fds中被剔除，這裡的select設置time out為NULL，阻塞操作，直到read_fds集合中描述符有變化
if ((rc = select(max + 1, &read_fds, NULL, NULL, NULL)) < 0) {
if (errno == EINTR)
continue;
SLOGE("select failed (%s) mListen=%d, max=%d", strerror(errno), mListen, max);
sleep(1);
continue;
} else if (!rc)
continue;
if (FD_ISSET(mCtrlPipe[0], &read_fds))//如果匿名管道有數據可讀，就退出
break;
if (mListen && FD_ISSET(mSock, &read_fds)) {//如果是正常監聽的 mListen 為true，然後mSock這個描述符有可讀數據，就創建鏈接，新建異步處理的SocketClient加入到mClients容器，這裡的mSock 是vold這個套接字的描述符
struct sockaddr addr;
socklen_t alen;
int c;
do {
alen = sizeof(addr);
c = accept(mSock, &addr, &alen);
SLOGV("%s got %d from accept", mSocketName, c);
} while (c < 0 && errno == EINTR);
if (c < 0) {
SLOGE("accept failed (%s)", strerror(errno));
sleep(1);
continue;
}
pthread_mutex_lock(&mClientsLock);
mClients->push_back(new SocketClient(c, true, mUseCmdNum));
pthread_mutex_unlock(&mClientsLock);
}
/* Add all active clients to the pending list first */
pendingList->clear();
pthread_mutex_lock(&mClientsLock);
for (it = mClients->begin(); it != mClients->end(); ++it) {//把上面有請求建立鏈接的Client加入到pendingList 容器中，後面處理
int fd = (*it)->getSocket();
if (FD_ISSET(fd, &read_fds)) {
pendingList->push_back(*it);
}
}
pthread_mutex_unlock(&mClientsLock);
/* Process the pending list, since it is owned by the thread,
* there is no need to lock it */
while (!pendingList->empty()) {//遍歷處理
/* Pop the first item from the list */
it = pendingList->begin();
SocketClient* c = *it;
pendingList->erase(it);
/* Process it, if false is returned and our sockets are
* connection-based, remove and destroy it */
if (!onDataAvailable(c) && mListen) {//調用到FrameworkListener 中onDataAvailable處理Socket事件
/* Remove the client from our array */
SLOGV("going to zap %d for %s", c->getSocket(), mSocketName);
pthread_mutex_lock(&mClientsLock);
for (it = mClients->begin(); it != mClients->end(); ++it) {
if (*it == c) {
mClients->erase(it);//處理完成之後，從容器中移除這次的監聽到的SocketClient
break;
}
}
pthread_mutex_unlock(&mClientsLock);
/* Remove our reference to the client */
c->decRef();
}
}
}
delete pendingList;
}
SocketListener的核心處理函數是onDataAvailable
bool FrameworkListener::onDataAvailable(SocketClient *c) {
char buffer[255];
int len;
len = TEMP_FAILURE_RETRY(read(c->getSocket(), buffer, sizeof(buffer)));//讀Socket 內容保存到buffer
if (len < 0) {
SLOGE("read() failed (%s)", strerror(errno));
return false;
} else if (!len)
return false;
int offset = 0;
int i;
for (i = 0; i < len; i++) {
if (buffer[i] == '\0') {//一次傳入一個字符串
//分發命令，最終會調用對應命令對象的runCommand進行函數處理。
dispatchCommand(c, buffer + offset);
offset = i + 1;
}
}
return true;
}
調用dispatchcommand
void FrameworkListener::dispatchCommand(SocketClient *cli, char *data) {
FrameworkCommandCollection::iterator i;
int argc = 0;
char *argv[FrameworkListener::CMD_ARGS_MAX];
char tmp[255];
...//解析判斷command buffer
for (i = mCommands->begin(); i != mCommands->end(); ++i) {//遍歷之前register到FrameworkListener中的FrameworkCommand容器
FrameworkCommand *c = *i;
if (!strcmp(argv[0], c->getCommand())) {//其中有注冊“Volume”，如果這裡是Volume開頭的command，那麼就調用，Volume構造的時候所構造的父類FrameworkCommand中的runCommand函數
if (c->runCommand(cli, argc, argv)) {
SLOGW("Handler '%s' error (%s)", c->getCommand(), strerror(errno));
}
goto out;
}
}
}
以Volume這個runcommand為例 /system/vold/CommandListener.cpp中
int CommandListener::VolumeCmd::runCommand(SocketClient *cli,
int argc, char **argv) {
dumpArgs(argc, argv, -1);
if (argc < 2) {
cli->sendMsg(ResponseCode::CommandSyntaxError, "Missing Argument", false);
return 0;
}
VolumeManager *vm = VolumeManager::Instance();//獲取已經存在的VolumeManager實例
...
else if (!strcmp(argv[1], "mount")) {//判斷command 內容
if (argc != 3) {
cli->sendMsg(ResponseCode::CommandSyntaxError, "Usage: volume mount ", false);
return 0;
}
rc = vm->mountVolume(argv[2]);//交給VolumeManager來對Volume進行操作
}
...
}
public MountService(Context context) {
mContext = context;
synchronized (mVolumesLock) {
readStorageListLocked(); // 解析/frameworks/base/core/res/res/xml/storage_list.xml保存volume到 MountService的list ：mVolumes中
}
// XXX: This will go away soon in favor of IMountServiceObserver
mPms = (PackageManagerService) ServiceManager.getService("package");
mHandlerThread = new HandlerThread("MountService");
mHandlerThread.start();
mHandler = new MountServiceHandler(mHandlerThread.getLooper());//新建消息處理handler
// Watch for user changes
final IntentFilter userFilter = new IntentFilter();
userFilter.addAction(Intent.ACTION_USER_ADDED);
userFilter.addAction(Intent.ACTION_USER_REMOVED);
mContext.registerReceiver(mUserReceiver, userFilter, null, mHandler);//注冊廣播接收
// Watch for USB changes on primary volume
final StorageVolume primary = getPrimaryPhysicalVolume();
if (primary != null && primary.allowMassStorage()) {
mContext.registerReceiver(
mUsbReceiver, new IntentFilter(UsbManager.ACTION_USB_STATE), null, mHandler);
}
// Add OBB Action Handler to MountService thread.
mObbActionHandler = new ObbActionHandler(mHandlerThread.getLooper());
/*
* Create the connection to vold with a maximum queue of twice the
* amount of containers we'd ever expect to have. This keeps an
* "asec list" from blocking a thread repeatedly.
*/

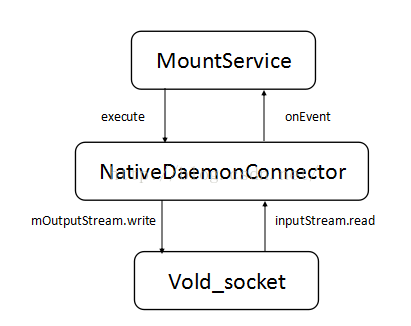

mConnector = new NativeDaemonConnector(this, "vold", MAX_CONTAINERS * 2, VOLD_TAG, 25);//創建 vold 的監聽接收，用於接收system中Vold的socket消息
Thread thread = new Thread(mConnector, VOLD_TAG);
thread.start();//啟動線程，NativeDaemonConnector實現了Runnable接口，實現在 run中
// Add ourself to the Watchdog monitors if enabled.
if (WATCHDOG_ENABLE) {
Watchdog.getInstance().addMonitor(this);
}
}
NativeDaemonConnector(INativeDaemonConnectorCallbacks callbacks, String socket,
int responseQueueSize, String logTag, int maxLogSize) {
mCallbacks = callbacks; //回調
mSocket = socket; // socket名稱
mResponseQueue = new ResponseQueue(responseQueueSize);//構建一個響應隊列
mSequenceNumber = new AtomicInteger(0);
TAG = logTag != null ? logTag : "NativeDaemonConnector";
}
開啟監測線程的run方法
public void run() {
HandlerThread thread = new HandlerThread(TAG + ".CallbackHandler"); //TAG 為 VoldConnector，這裡新建一個名為VoldConnector.CallbackHandler的消息處理線程，用於下面接收到vold 的socket之後的處理
thread.start();
mCallbackHandler = new Handler(thread.getLooper(), this); //創建handler 用於分發消息
while (true) {
try {
listenToSocket();// while 循環 監聽socket
} catch (Exception e) {
loge("Error in NativeDaemonConnector: " + e);
SystemClock.sleep(5000);
}
}
}
private void listenToSocket() throws IOException {
LocalSocket socket = null;
try {
socket = new LocalSocket(); //創建本地socket
LocalSocketAddress address = new LocalSocketAddress(mSocket,
LocalSocketAddress.Namespace.RESERVED);//獲得服務端vold socket的地址
socket.connect(address);//連接
InputStream inputStream = socket.getInputStream();
synchronized (mDaemonLock) {
mOutputStream = socket.getOutputStream();
}//獲取輸入輸出流
mCallbacks.onDaemonConnected();//回調，在MountService中執行，初始化一些Volume狀態信息
byte[] buffer = new byte[BUFFER_SIZE];
int start = 0;
while (true) {
int count = inputStream.read(buffer, start, BUFFER_SIZE - start);//讀取數據到buffer
if (count < 0) {//連接斷開，跳出當前while ，外部while循環 重新調用該函數連接
loge("got " + count + " reading with start = " + start);
break;
}
// Add our starting point to the count and reset the start.
count += start;
start = 0;
for (int i = 0; i < count; i++) {
if (buffer[i] == 0) {
final String rawEvent = new String(
buffer, start, i - start, Charsets.UTF_8);
log("RCV <- {" + rawEvent + "}");
try {
final NativeDaemonEvent event = NativeDaemonEvent.parseRawEvent(
rawEvent); //解析成event 保存
if (event.isClassUnsolicited()) { //判斷event的code范圍 code >= 600 && code < 700
// TODO: migrate to sending NativeDaemonEvent instances
mCallbackHandler.sendMessage(mCallbackHandler.obtainMessage( //發送消息，把event交給handle來分發處理
event.getCode(), event.getRawEvent()));
} else {
mResponseQueue.add(event.getCmdNumber(), event);//加入到響應隊列
}
} catch (IllegalArgumentException e) {
log("Problem parsing message: " + rawEvent + " - " + e);
}
start = i + 1;
}
}
在NativeDaemonConnector中的handle處理為：
public boolean handleMessage(Message msg) {
String event = (String) msg.obj;
try {
if (!mCallbacks.onEvent(msg.what, event, NativeDaemonEvent.unescapeArgs(event))) { //回調到MountService 的onEent函數
log(String.format("Unhandled event '%s'", event));
}
} catch (Exception e) {
loge("Error handling '" + event + "': " + e);
}
return true;
}
MountService中onEvent
public boolean onEvent(int code, String raw, String[] cooked) {
if (DEBUG_EVENTS) {
StringBuilder builder = new StringBuilder();
builder.append("onEvent::");
builder.append(" raw= " + raw);
if (cooked != null) {
builder.append(" cooked = " );
for (String str : cooked) {
builder.append(" " + str);
}
}
Slog.i(TAG, builder.toString());
}
if (code == VoldResponseCode.VolumeStateChange) { //根據 Vold的Code 執行
/*
* One of the volumes we're managing has changed state.
* Format: "NNN Volume
private int doMountVolume(String path) {
int rc = StorageResultCode.OperationSucceeded;
final StorageVolume volume;
synchronized (mVolumesLock) {
volume = mVolumesByPath.get(path);
}
if (DEBUG_EVENTS) Slog.i(TAG, "doMountVolume: Mouting " + path);
try {
mConnector.execute("volume", "mount", path);// 調用到NativeDaemonConnector中的execute
}
NativeDaemonConnector的execute
public NativeDaemonEvent[] execute(int timeout, String cmd, Object... args)
throws NativeDaemonConnectorException {
final ArrayList events = Lists.newArrayList();
final int sequenceNumber = mSequenceNumber.incrementAndGet();
final StringBuilder cmdBuilder =
new StringBuilder(Integer.toString(sequenceNumber)).append(' ');
final long startTime = SystemClock.elapsedRealtime();
makeCommand(cmdBuilder, cmd, args); //轉換制作成標准的Command
final String logCmd = cmdBuilder.toString(); /* includes cmdNum, cmd, args */
log("SND -> {" + logCmd + "}");
cmdBuilder.append('\0');
final String sentCmd = cmdBuilder.toString(); /* logCmd + \0 */
synchronized (mDaemonLock) {
if (mOutputStream == null) {
throw new NativeDaemonConnectorException("missing output stream");
} else {
try {
mOutputStream.write(sentCmd.getBytes(Charsets.UTF_8)); //通過在listenToSocket中獲取的輸出流，寫入轉換好的sentCmd
} catch (IOException e) {
throw new NativeDaemonConnectorException("problem sending command", e);
}
}
}
}
Android實現頂部導航菜單左右滑動效果
本文給大家介紹在Android中如何實現頂部導航菜單左右滑動效果，具體內容如下第一種解決方案： 實現原理是使用android-support-v4.jar包中ViewPa
Android 進度條顯示在標題欄的實現方法
好吧，先給大家展示效果圖：xml文件：<LinearLayout xmlns:android=http://schemas.android.com/apk/res/
Android View的事件分發機制探索
概述 Android事件傳遞機制也是Android系統中比較重要的一塊，事件類型有很多種，這裡主要討論TouchEvent的事件在framework層的傳遞處理機制。因
仿淘寶物流信息控件
先看下效果吧public class WuliuView extends View { private int mMaginTop; //物流信息
