最近在項目中需要對外部存儲設備的狀態進行監聽，所以整理了此筆記，以便日後查看。

外部存儲設備的狀態變化時發出的廣播

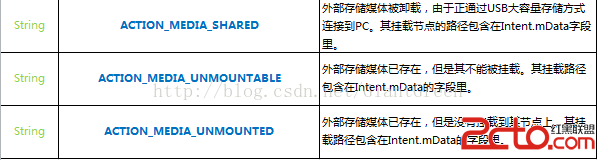

對比不同狀態下的廣播

<喎?/kf/ware/vc/" target="_blank" class="keylink">vcD4KPHA+MS4gsuXI683isr9TRL+oyrGjujwvcD4KPGltZyBzcmM9"/uploadfile/Collfiles/20141218/2014121808471623.png" align="left" alt="\">

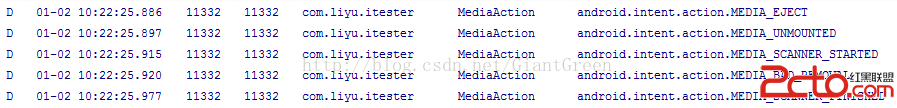

2. 移除外部SD卡時：

3. 連接PC進入USB大容量存儲模式時：

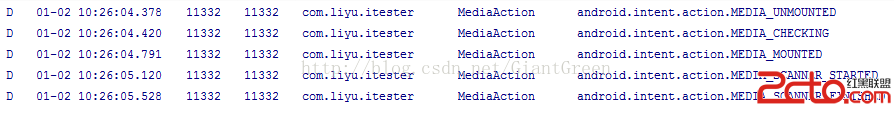

4. 連接PC退出USB大容量存儲模式時：

代碼實現監聽

public void startListen()
{
    IntentFilter intentFilter = new IntentFilter(Intent.ACTION_MEDIA_MOUNTED);
    intentFilter.setPriority(1000);
    intentFilter.addAction(Intent.ACTION_MEDIA_UNMOUNTED);
    intentFilter.addAction(Intent.ACTION_MEDIA_REMOVED);
    intentFilter.addAction(Intent.ACTION_MEDIA_SHARED);
    intentFilter.addAction(Intent.ACTION_MEDIA_BAD_REMOVAL);
    intentFilter.addAction(Intent.ACTION_MEDIA_SCANNER_STARTED);
    intentFilter.addAction(Intent.ACTION_MEDIA_SCANNER_FINISHED);
    intentFilter.addAction(Intent.ACTION_MEDIA_CHECKING);
    intentFilter.addAction(Intent.ACTION_MEDIA_EJECT);
    intentFilter.addAction(Intent.ACTION_MEDIA_NOFS);
    intentFilter.addAction(Intent.ACTION_MEDIA_BUTTON);
    intentFilter.addAction(Intent.ACTION_MEDIA_SCANNER_SCAN_FILE);
    intentFilter.addDataScheme("file");
    registerReceiver(broadcastRec, intentFilter);
}

private final BroadcastReceiver broadcastRec = new BroadcastReceiver() {
    @Override
    public void onReceive(Context context, Intent intent) {
        String action = intent.getAction();
        Log.d("MediaAction", action);
        if (action.equals("android.intent.action.MEDIA_MOUNTED"))
        {
        	//todo
        } else if (action.equals(Intent.ACTION_MEDIA_UNMOUNTED))
        {
        	//todo
        }else if (action.equals(Intent.ACTION_MEDIA_SCANNER_STARTED)){
        }else if (action.equals(Intent.ACTION_MEDIA_SCANNER_FINISHED)){
        }else if (action.equals(Intent.ACTION_MEDIA_SHARED)){
        }else {
        }
    }
};
