Android 開源柱狀圖分析實現

在平時開發中柱狀形狀偶爾會有項目需求，由於又一次開發需要，去找開源的組件都不好用，要不調用很不方便，要不它們類庫太笨重，下面介紹一個輕巧方便控件，原理就是用View 重新繪畫一個柱狀圖形控件，並適配所有屏幕。

demo實現後效果圖如上

1. 導入DisplayView（簡稱SDK）

下載最新版sdk的zip包，解壓將其中的download釋放到本地目錄，Eclipse用戶右鍵您的工程根目錄，選擇Properties -> Java Build Path -> Libraries， 然後點擊 Add External JARs... 選擇指向download 的路徑，點擊OK，即導入成功。

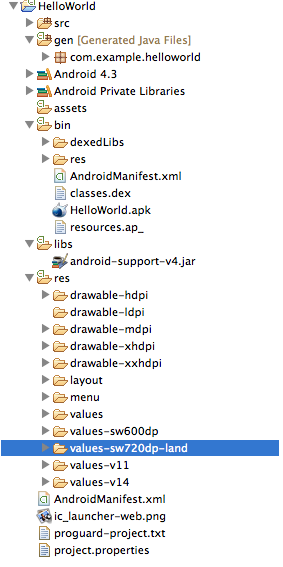

下載最新版SDK的zip包，將其中的libs 文件夾合並到本地工程libs子目錄下
Eclipse用戶右鍵工程根目錄，選擇Properties -> Java Build Path -> Libraries，然後點擊Add External JARs... 選擇指向jar的路徑，點擊OK，即導入成功。
注意。

2.代碼接入詳解使用說明：

在下載代碼後，裡面有參考代碼，代碼都有注釋和調用詳解，先講解ChartActivity調用類如何編寫。

public class ChartActivity extends Activity {

	private LinearLayout layout_chart;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		// TODO Auto-generated method stub
		super.onCreate(savedInstanceState);
		// 先編寫一個布局文件
		this.setContentView(R.layout.layout_chart);
		//創建一個線性容器，之後就是向著裡面嵌套視圖
		layout_chart = (LinearLayout) this.findViewById(R.id.lay_chart);
		LinearLayout.LayoutParams layParam = new LinearLayout.LayoutParams(
				LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT);
		layParam.gravity = Gravity.CENTER_HORIZONTAL;
		//創建柱狀性參數對象
		ChartEntity entity = new ChartEntity();
		entity.scale = 6;
		entity.row_height = 60;
		entity.row_weight = 4;
		entity.padding_weight = 8;
		//創建一個縱向數據容器
		List hList = new ArrayList();
		//創建一個橫向數據容器，注解數據格式如:key,是否顯示在橫坐標
		List wList = new ArrayList();
		//創建一個存儲高度值容器
		HashMap map = new HashMap();
		hList.add(0公裡);
		hList.add(10-);
		hList.add(20-);
		hList.add(30-);
		entity.hList = hList;
		for (int i = 0; i < 30; i++) {
			String curStr;
			if ((i + 1) % 5 == 0) {
				curStr = (i + 1) + ,true;
			} else {
				curStr = (i + 1) + ,false;
			}
			wList.add(curStr);
			map.put(curStr, i * 4);
		}
		entity.wList = wList;
		entity.map = map;
		ChartView chartView = new ChartView(this.getApplicationContext(),
				entity);
		layout_chart.addView(chartView, layParam);
	}

	@Override
	protected void onDestroy() {
		// TODO Auto-generated method stub
		super.onDestroy();
	}

	@Override
	protected void onPause() {
		// TODO Auto-generated method stub
		super.onPause();
	}

	@Override
	protected void onResume() {
		// TODO Auto-generated method stub
		super.onResume();
	}

	@Override
	protected void onStart() {
		// TODO Auto-generated method stub
		super.onStart();
	}
}

3.ChartEntity實體類核心代碼詳解：

ChartEntity是柱狀圖參數實體類，每個都有詳解，供外部調用和修改。

/**
 * 柱狀圖形實體類
 *
 * @author 胡少平
 *
 */
public class ChartEntity {
        // 每個柱形縱向數據顯示集：String = 顯示內容
        public List hList;
        // 每個柱形橫向數據顯示集：String = 顯示內容,true|false
        public List wList;
        //橫向顯示值
        public HashMap map;
        //柱形比例度
        public int scale;
        // 每個柱形橫向柱狀顯示寬度
        public int row_weight = 0;
        // 每個柱形橫向柱狀間距
        public int padding_weight = 0;
        //橫向起始點x坐標
        public int startX = 30;
        //每個柱形縱向顯示寬度
        public int row_height=0;
        //每個柱形縱向
        public int padding_height=12;
        public ChartEntity() {

                // TODO Auto-generated constructor stub
        }
}

4.ChartViewUI組件核心代碼詳解如下：

/**
 *
 * 柱狀形顯示UI組件
 *
 * @author 胡少平
 *
 */

public class ChartView extends View {

	private ChartEntity entity;

	private Paint paint;
	// 每個柱形寬度
	private int zWith = 0;
	private int zPadding = 0;
	private int startX = 0;
	private int totalHeight = 0;
	private int lineHeight = 0;
	private int zHeight = 0;
	// 橫向x坐標顯示個數
	private int wSize = 0;
	// 縱向y坐標顯示個數
	private int hSize = 0;

	public ChartView(Context context, ChartEntity entity) {
		super(context);
		paint = new Paint();
		paint.setAntiAlias(true);
		this.entity = entity;
		zWith = DeviceInfo.DipToPixels(this.getContext(), entity.row_weight);
		zPadding = DeviceInfo.DipToPixels(this.getContext(),
				entity.padding_weight);
		startX = DeviceInfo.DipToPixels(this.getContext(), entity.startX);
		zHeight = DeviceInfo.DipToPixels(this.getContext(), entity.row_height);
		totalHeight = DeviceInfo
				.DipToPixels(this.getContext(), entity.row_height
						* entity.hList.size() + entity.padding_height);
		lineHeight = DeviceInfo.DipToPixels(this.getContext(),
				entity.row_height * entity.hList.size());
		wSize = entity != null && entity.wList != null
				&& entity.wList.size() > 0 ? entity.wList.size() : 0;
		hSize = entity != null && entity.hList != null
				&& entity.hList.size() > 0 ? entity.hList.size() : 0;
	}

	public void drawAxis(Canvas canvas) {
		//設置畫筆屬性
		paint.setColor(Color.RED);
		paint.setStrokeWidth(2);
		paint.setTextSize(DeviceInfo.DipToPixels(this.getContext(), 12));
		//用游標繪畫線條
		canvas.drawLine(startX, lineHeight, wSize * zWith + wSize * zPadding
				+ startX, lineHeight, paint);
		canvas.drawLine(startX, 0, startX, lineHeight, paint);
		int x = 0;
		int y = 0;
		for (int i = 0; i < wSize; i++) {
			x = startX + i * zPadding + (i) * zWith;
			if (entity != null && entity.wList != null) {
				String wVal = entity.wList.get(i);
				String[] wArray = wVal.split(,);
				if (wArray[1].equals(true)) {
					canvas.drawText(wArray[0], x, totalHeight, paint);
				}
			}
		}
		for (int i = 0; i < hSize; i++) {
			y = lineHeight - i * zHeight;
			if (entity != null && entity.hList != null) {
				String wVal = entity.hList.get(i);
				String[] wArray = wVal.split(,);
				if (i == 0) {
					canvas.drawText(wArray[0],
							DeviceInfo.DipToPixels(this.getContext(), 5), y,
							paint);
				} else {
					//用游標繪畫文本
					canvas.drawText(
							wArray[0],
							startX
									- DeviceInfo.DipToPixels(this.getContext(),
											15), y, paint);
				}
			}
		}
	}

	public void drawChart(Canvas canvas) {
		paint.setColor(Color.RED);
		if (entity != null && entity.wList.size() > 0) {
			for (int i = 0; i < wSize; i++) {
				int total = (int) (entity.map.get(entity.wList.get(i)) == null ? 0
						: entity.map.get(entity.wList.get(i)) * entity.scale);
				//用游標畫一個方塊
				canvas.drawRect((i + 1) * zPadding + (i) * zWith + startX,
						lineHeight - total, i * zPadding + i * zWith + startX,
						lineHeight, paint);
			}
		}
	}

	@Override
	public void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
		super.onMeasure(widthMeasureSpec, heightMeasureSpec);
		final int widthMode = MeasureSpec.getMode(widthMeasureSpec);
		final int widthSize = MeasureSpec.getSize(widthMeasureSpec);
		final int heightMode = MeasureSpec.getMode(heightMeasureSpec);
		final int heightSize = MeasureSpec.getSize(totalHeight);
		setMeasuredDimension(widthSize, heightSize);
	}

	@Override
	public void onDraw(Canvas canvas) {
		drawAxis(canvas);
		drawChart(canvas);
	}

}
