Android課程---關於GridView網格視圖的學習

activity_ui6.xml

<?xml version="1.0" encoding="utf-8"?>
<GridView xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:id="@+id/gv_1"
    android:numColumns="auto_fit"
    android:verticalSpacing="10dp"
    android:horizontalSpacing="10dp"
    android:columnWidth="100dp"
    android:gravity="center"
    android:stretchMode="columnWidth">

    <!--stretchMode:縮放模式  columnWidth:根據列寬來設-->


</GridView>

UIActivity6.java

package com.hanqi.test5;

import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.BaseAdapter;
import android.widget.GridView;
import android.widget.ImageView;
import android.widget.Toast;

public class UIActivity6 extends AppCompatActivity {

    int[] imid;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_ui6);

        GridView gv_1 =(GridView)findViewById(R.id.gv_1);

        imid = new int[]{R.drawable.yuantu,R.drawable.yuantu,R.drawable.yuantu,R.drawable.yuantu,R.drawable.yuantu
        ,R.drawable.yuantu,R.drawable.yuantu,R.drawable.yuantu};

        gv_1.setAdapter(new MyBaseAdapter());
        gv_1.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                Toast.makeText(UIActivity6.this, "position =" + position, Toast.LENGTH_SHORT).show();
            }
        });

    }
    class MyBaseAdapter extends BaseAdapter
    {
        @Override
        public int getCount() {
            return imid.length;
        }

        @Override
        public Object getItem(int position) {
            return imid[position];
        }

        @Override
        public long getItemId(int position) {
            return position;
        }

        @Override
        public View getView(int position, View convertView, ViewGroup parent) {
            //獲取數據
            int Imageid = imid[position];
            //構造視圖
            ImageView iv_1 = null;
            if (convertView == null)
            {
                iv_1 = new ImageView(UIActivity6.this);

                iv_1.setLayoutParams(new GridView.LayoutParams(100,100));  //屬性設置
                iv_1.setScaleType(ImageView.ScaleType.FIT_XY);  //FIT_XY:自動全部充滿

            }
            else
            {
               iv_1 = (ImageView)convertView;  //強轉
            }
            iv_1.setImageResource(Imageid);

            return iv_1;
        }
    }
}

效果圖如下（因圖片本身是長方形的，用網格視圖縮放成了正方形，有點不好看）：

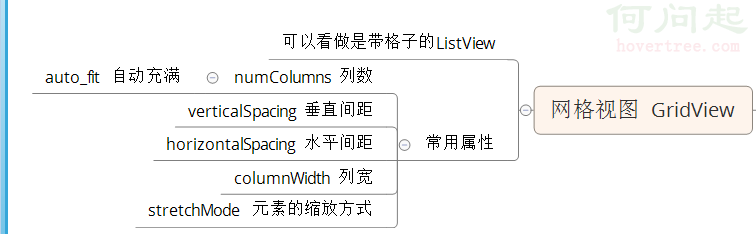

網格視圖的總結：
