安卓自定義View實現鐘表

編輯：關於Android編程



之前實現過html5版的鐘表，html5也有一個畫板屬性Canvas，相對於安卓的Canvas來說html5的功能要強大的多，就拿鐘表的實現，html5要方便簡單的多，而安卓實現起來則非常復雜，像指針轉動，html5可以畫一條線，然後可以用這條線旋轉一個弧度即可，而安卓必須是已知起點坐標和終點坐標，這就需要精確計算起始坐標了。先看下效果圖，因為是圖靜態的，動態圖也懶得做，所以看個大致效果即可，具體效果可以下載demo觀看：

\

這個鐘表並不算完美，正常的鐘表，秒針每轉動一格，分針和時針都會跟著轉動相應的弧度，但本例中偷了個懶，只有秒針轉一周時，分針才移動一小格，分針轉一周時，時針移動一大格，不滿一周的情況下不動，因為畫線需要精確的坐標值，如果做到這種效果那工作量可就大了去了，因此我們知道原理即可。

實現思路：

1.重寫View，並在ondraw方法中繪圖；

2.定義邊框寬度，刻度寬度，長度，指針寬度，長度，計算圓心坐標及表盤半徑；

3.繪制邊框：



mPaint.setStrokeWidth(bordWidth); // 設置圓環的寬度
        mPaint.setColor(bordColor);
		canvas.drawCircle(getWidth()/2, getWidth()/2, r, mPaint);

4.繪制刻度：





//畫刻度
		//12
		mPaint.setStrokeWidth(timeLineB_W);
		mPaint.setColor(timeColor);
		canvas.drawLine(circleX,bordWidth, circleX, bordWidth+timeLineB_H, mPaint);
		//12-1
		mPaint.setStrokeWidth(timeLineS_W);
		for(int i=1;i<6;i++){
			canvas.drawLine((float)(circleX+r*Math.cos(Math.toRadians(90-i*6)) ),(float)(circleX-r*Math.cos(Math.toRadians(i*6))), (float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-i*6))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(i*6))),mPaint);
		}
		//1
		mPaint.setStrokeWidth(timeLineB_W);
		canvas.drawLine((float)(circleX+r*Math.cos(Math.toRadians(60)) ),(float)(circleX-r*Math.cos(Math.toRadians(30))), (float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(60))),(float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(30))),mPaint);
		//1-2
		mPaint.setStrokeWidth(timeLineS_W);
		for(int i=1;i<6;i++){
			canvas.drawLine((float)(circleX+r*Math.cos(Math.toRadians(90-30-i*6)) ),(float)(circleX-r*Math.cos(Math.toRadians(30+i*6))), (float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-i*6))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(30+i*6))),mPaint);
		}
		//2
		mPaint.setStrokeWidth(timeLineB_W);
		canvas.drawLine((float)(circleX+r*Math.cos(Math.toRadians(30)) ),(float)(circleX-r*Math.cos(Math.toRadians(60))), (float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(30))),(float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(60))),mPaint);
	   //2-3
		mPaint.setStrokeWidth(timeLineS_W);
		for(int i=1;i<6;i++){
			canvas.drawLine((float)(circleX+r*Math.cos(Math.toRadians(90-60-i*6)) ),(float)(circleX-r*Math.cos(Math.toRadians(60+i*6))), (float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-60-i*6))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(60+i*6))),mPaint);
		}
		//3
		mPaint.setStrokeWidth(timeLineB_W);
		canvas.drawLine(getWidth()-bordWidth, circleX, getWidth()-bordWidth-timeLineB_H, circleX, mPaint);
		//3-4
		mPaint.setStrokeWidth(timeLineS_W);
		for(int i=1;i<6;i++){
			canvas.drawLine((float)(circleX+r*Math.cos(Math.toRadians(i*6)) ),(float)(circleX+r*Math.cos(Math.toRadians(90-i*6))), (float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(i*6))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-i*6))),mPaint);
		}
		//4
		mPaint.setStrokeWidth(timeLineB_W);
		canvas.drawLine((float)(circleX+r*Math.cos(Math.toRadians(30)) ),(float)(circleX+r*Math.cos(Math.toRadians(60))), (float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(30))),(float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(60))),mPaint);
		//4-5
		mPaint.setStrokeWidth(timeLineS_W);
		for(int i=1;i<6;i++){
			canvas.drawLine((float)(circleX+r*Math.cos(Math.toRadians(30+i*6)) ),(float)(circleX+r*Math.cos(Math.toRadians(90-30-i*6))), (float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(30+i*6))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-i*6))),mPaint);
		}
		//5
		mPaint.setStrokeWidth(timeLineB_W);
		canvas.drawLine((float)(circleX+r*Math.cos(Math.toRadians(60)) ),(float)(circleX+r*Math.cos(Math.toRadians(30))), (float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(60))),(float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(30))),mPaint);
		//5-6
		mPaint.setStrokeWidth(timeLineS_W);
		for(int i=1;i<6;i++){
			canvas.drawLine((float)(circleX+r*Math.cos(Math.toRadians(60+i*6)) ),(float)(circleX+r*Math.cos(Math.toRadians(90-60-i*6))), (float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(60+i*6))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-60-i*6))),mPaint);
		}
		//6
		mPaint.setStrokeWidth(timeLineB_W);
		canvas.drawLine(circleX,getWidth()-bordWidth, circleX, getWidth()-bordWidth-timeLineB_H,mPaint);

		//6-7
		mPaint.setStrokeWidth(timeLineS_W);
		for(int i=1;i<6;i++){
			canvas.drawLine((float)(circleX-r*Math.cos(Math.toRadians(90-i*6)) ),(float)(circleX+r*Math.cos(Math.toRadians(i*6))), (float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-i*6))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(i*6))),mPaint);
		}
		//7
		mPaint.setStrokeWidth(timeLineB_W);
		canvas.drawLine((float)(circleX-r*Math.cos(Math.toRadians(60)) ),(float)(circleX+r*Math.cos(Math.toRadians(30))), (float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(60))),(float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(30))),mPaint);
		//7-8
		mPaint.setStrokeWidth(timeLineS_W);
		for(int i=1;i<6;i++){
			canvas.drawLine((float)(circleX-r*Math.cos(Math.toRadians(90-30-i*6)) ),(float)(circleX+r*Math.cos(Math.toRadians(30+i*6))), (float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-i*6))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(30+i*6))),mPaint);
		}
		//8
		mPaint.setStrokeWidth(timeLineB_W);
		canvas.drawLine((float)(circleX-r*Math.cos(Math.toRadians(30)) ),(float)(circleX+r*Math.cos(Math.toRadians(60))), (float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(30))),(float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(60))),mPaint);
		//8-9
		mPaint.setStrokeWidth(timeLineS_W);
		for(int i=1;i<6;i++){
			canvas.drawLine((float)(circleX-r*Math.cos(Math.toRadians(90-60-i*6)) ),(float)(circleX+r*Math.cos(Math.toRadians(60+i*6))), (float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-60-i*6))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(60+i*6))),mPaint);
		}
		//9
		mPaint.setStrokeWidth(timeLineB_W);
		canvas.drawLine(bordWidth,circleX, bordWidth+timeLineB_H, circleX,mPaint);
		//9-10
		mPaint.setStrokeWidth(timeLineS_W);
		for(int i=1;i<6;i++){
			canvas.drawLine((float)(circleX-r*Math.cos(Math.toRadians(i*6)) ),(float)(circleX-r*Math.cos(Math.toRadians(90-i*6))), (float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(i*6))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-i*6))),mPaint);
		}
		//10
		mPaint.setStrokeWidth(timeLineB_W);
		canvas.drawLine((float)(circleX-r*Math.cos(Math.toRadians(30)) ),(float)(circleX-r*Math.cos(Math.toRadians(60))), (float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(30))),(float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(60))),mPaint);
		//10-11
		mPaint.setStrokeWidth(timeLineS_W);
		for(int i=1;i<6;i++){
			canvas.drawLine((float)(circleX-r*Math.cos(Math.toRadians(30+i*6)) ),(float)(circleX-r*Math.cos(Math.toRadians(90-30-i*6))), (float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(30+i*6))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-i*6))),mPaint);
		}
		//11
		mPaint.setStrokeWidth(timeLineB_W);
		canvas.drawLine((float)(circleX-r*Math.cos(Math.toRadians(60)) ),(float)(circleX-r*Math.cos(Math.toRadians(30))), (float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(60))),(float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(30))),mPaint);
		//11-12
		mPaint.setStrokeWidth(timeLineS_W);
		for(int i=1;i<6;i++){
			canvas.drawLine((float)(circleX-r*Math.cos(Math.toRadians(60+i*6)) ),(float)(circleX-r*Math.cos(Math.toRadians(90-60-i*6))), (float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(60+i*6))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-60-i*6))),mPaint);
		}

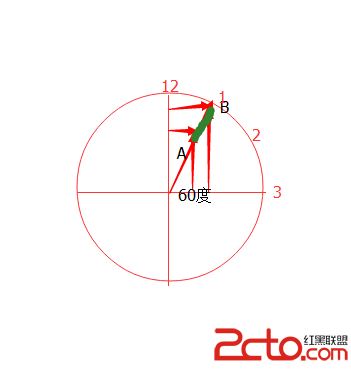

刻度是逐一計算起始點坐標並繪制的，拿1點的刻度來說，



\


已知圓心坐標（x,y）,半徑r，AB長度為a，求A點B點坐標。這應該是初中的題目了吧，很好計算，只要求出A點到y軸和x軸的距離，B點到y軸和x軸的距離即可（最方便的辦法就是利用正余玄函數了，而Java也提供了正余玄函數的算法：Math.cos(Math.toRadians(角度值)，因為Math.cos傳的是弧度，所以要將角度轉化為弧度如Math.toRadians(60)），當然要注意屏幕坐標與數學中的象限坐標是不同的，所以AB點坐標要用求出的距離值結合圓的半徑求出該點在屏幕中的實際坐標，然後畫線即可。

5.繪制指針交點：



mPaint.setStrokeWidth(2);
		mPaint.setStyle(Paint.Style.FILL);
		canvas.drawCircle(circleX,circleX, 10, mPaint);
6.秒針轉動：



到這裡，我們得思考下，鐘表是要動的啊，那怎麼實現打開應用鐘表就開始走呢？很簡單吧，初始化View時，在View的構造方法中開啟個線程去不斷重繪View即可，時間間隔當然為一秒，這也就給你視覺感是指針一秒轉動一次，另外需要你對秒針分針時針轉動時相互關聯所走的角度有一個清晰的思路，如果你連他們之間的關系都搞不明白，那看代碼就更不用說了：



						 while (true){
		                    if (ss == 360){
		                    	mm++;//秒針每轉一圈，分針走一格，一格6度，一圈60格
		                    	if(mm==60){
		                    		hh++;//分針轉一圈，時針走一格，一格30度，一圈12格
		                    		if(hh==12){
		                    			hh=0;
		                    		}
		                    		mm=0;
		                    	}
		                        ss = 0;
		                    }
		                    	postInvalidate();  //重繪
		                    try{
		                        Thread.sleep(1000);  //暫停1秒
		                    } catch (InterruptedException e){
		                        e.printStackTrace();
		                    }
		                    ss+=6; //360度，分針每秒轉動6度
		                }

秒針轉動：





mPaint.setStrokeWidth(timeLineS_W-5);//設置秒針寬度
		mPaint.setColor(pointColor);
		r=r-timeLineB_H-5;//設置秒針長度
		//分針隨秒針轉動
		if(ss<=30){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-ss*1))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(ss*1))), mPaint);
		}else if(ss<=60){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-(ss-30)*1))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(30+(ss-30)*1))), mPaint);
		}else if(ss<=90){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-60-(ss-60)*1))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(60+(ss-60)*1))), mPaint);
		}else if(ss<=120){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians((ss-90)*1))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-(ss-90)*1))), mPaint);
		}else if(ss<=150){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(30+(ss-120)*1))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-(ss-120)*1))), mPaint);
		}else if(ss<=180){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(60+(ss-150)*1))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-60-(ss-150)*1))), mPaint);
		}else if(ss<=210){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-(ss-180)*1))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians((ss-180)*1))), mPaint);
		}else if(ss<=240){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-(ss-210)*1))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(30+(ss-210)*1))), mPaint);
		}else if(ss<=270){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-60-(ss-240)*1))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(60+(ss-240)*1))), mPaint);
		}else if(ss<=300){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians((ss-270)*1))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-(ss-270)*1))),mPaint);
		}else if(ss<=330){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(30+(ss-300)*1))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-(ss-300)*1))),mPaint);
		}else if(ss<=360){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(60+(ss-330)*1))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-60-(ss-330)*1))),mPaint);
		}

7.分針轉動：





mPaint.setStrokeWidth(timeLineS_W);//設置分針寬度
		r=circleX-bordWidth;//還原
		r=r-timeLineB_H-50;//設置分針長度

		//分針隨秒針轉動
		if(mm<=5){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-mm*6))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(mm*6))), mPaint);
		}else if(mm<=10){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-(mm-5)*6))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(30+(mm-5)*6))), mPaint);
		}else if(mm<=15){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-60-(mm-10)*6))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(60+(mm-10)*6))), mPaint);
		}else if(mm<=20){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians((mm-15)*6))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-(mm-15)*6))), mPaint);
		}else if(mm<=25){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(30+(mm-20)*6))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-(mm-20)*6))), mPaint);
		}else if(mm<=30){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(60+(mm-25)*6))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-60-(mm-25)*6))), mPaint);
		}else if(mm<=35){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-(mm-30)*6))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians((mm-30)*6))), mPaint);
		}else if(mm<=40){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-(mm-35)*6))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(30+(mm-35)*6))), mPaint);
		}else if(mm<=45){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-60-(mm-40)*6))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(60+(mm-40)*6))), mPaint);
		}else if(mm<=50){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians((mm-45)*6))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-(mm-45)*6))),mPaint);
		}else if(mm<=55){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(30+(mm-50)*6))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-(mm-50)*6))),mPaint);
		}else if(mm<=60){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(60+(mm-55)*6))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-30-(mm-55)*6))),mPaint);
		}

8.時針轉動：





r=circleX-bordWidth;//還原
		r=r-timeLineB_H-120;//設置時針長度

		//時針隨分針轉動
		if(hh<=3){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-hh*30))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(hh*30))), mPaint);
		}else if(hh<=6){
			canvas.drawLine(circleX,circleX,(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians((hh-3)*30))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians(90-(hh-3)*30))), mPaint);
		}else if(hh<=9){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-(hh-6)*30))),(float)(circleX+(r-timeLineS_H)*Math.cos(Math.toRadians((hh-6)*30))), mPaint);
		}else if(hh<=12){
			canvas.drawLine(circleX,circleX,(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians((hh-9)*30))),(float)(circleX-(r-timeLineS_H)*Math.cos(Math.toRadians(90-(hh-9)*30))),mPaint);
		}

9.繪制刻度值：





//寫時刻數字
		mPaint.setTextSize(26);
		mPaint.setStrokeWidth(2);
		mPaint.setColor(bordColor);
		canvas.drawText(12, circleX-timeLineB_W, bordWidth+timeLineB_H+30, mPaint);
		canvas.drawText(1, (float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(60)))-20,(float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(30)))+20, mPaint);
		canvas.drawText(2, (float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(30)))-20,(float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(60)))+20, mPaint);
		canvas.drawText(3, getWidth()-bordWidth-timeLineB_H-20, circleX+10, mPaint);
		canvas.drawText(4,(float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(30)))-20,(float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(60))), mPaint);
		canvas.drawText(5, (float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(60)))-15,(float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(30)))-5, mPaint);
		canvas.drawText(6,circleX-10, getWidth()-bordWidth-timeLineB_H-10, mPaint);
		canvas.drawText(7, (float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(60))),(float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(30)))-10, mPaint);
		canvas.drawText(8,  (float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(30)))+10,(float)(circleX+(r-timeLineB_H)*Math.cos(Math.toRadians(60)))+5, mPaint);
		canvas.drawText(9, bordWidth+timeLineB_H+10, circleX+10, mPaint);
		canvas.drawText(10, (float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(30)))+10,(float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(60)))+20, mPaint);
		canvas.drawText(11, (float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(60))),(float)(circleX-(r-timeLineB_H)*Math.cos(Math.toRadians(30)))+25, mPaint);

在做的過程中會發現規律，就是每個大刻度（30度）即12點-1點，1點-2點......這之間所用的代碼是相同的，只需要改變一下轉動的角度值即可。秒針分為360，一次+6，轉動一格為6度；分針分為60，在秒針到360時+1，轉動一格為6度；時針分為12，在分針到60時+1，轉動一格為30度；這也就是計算的時候有*1的，有*6的，有*30的原因，具體可以體會下代碼中的算法，或者你有更好的算法歡迎分享出來！
