Android Menu半透明效果的開發實例

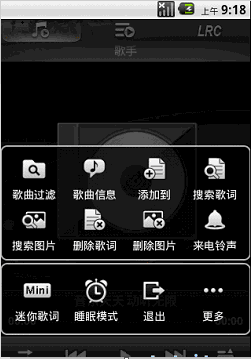

不知道大家是否用過天天動聽，對於它界面上的半透明Menu效果，筆者感覺非常漂亮。下面是天天動聽半透明Menu的截圖，欣賞下吧：

       感覺還不錯吧？那麼如何實現這種半透明Menu效果呢？本文就重點討論並給出這種Menu的具體代碼實現過程。

       首先分析下實現這種半透明Menu所需做的工作，並進行合理分解：

       1.  利用Shaper設置一個半透明圓角背景。

       2.  定義Menu布局，主要就GridView，把圖標都放在這個GridView。

       3.  Menu事件, 通過PopupWindow或者AlertDialog或者透明Activity顯示到頁面即可。

       4.  按鈕的監聽事件，實例中沒加。需要的話自己在Adapter裡加。

       比較簡單，不多說了。

       半透明圓角背景xml：

XML/HTML代碼

<?xml version="1.0" encoding="UTF-8"?>

<shape android:shape="rectangle">

 <solid android:color="#b4000000" />

 <stroke android:width="2.0dip" android:color="#b4ffffff" android:dashWidth="3.0dip" android:dashGap="0.0dip" />

 <padding android:left="7.0dip" android:top="7.0dip" android:right="7.0dip" android:bottom="7.0dip" />

 <corners android:radius="8.0dip" />

</shape>

        Menu布局：

XML/HTML代碼

<?xml version="1.0" encoding="UTF-8"?>

<LinearLayout

  android:orientation="vertical"

  android:layout_width="wrap_content"

  android:layout_height="fill_parent">


  <GridView android:gravity="center"

    android:layout_gravity="center"

    android:id="@+id/menuGridChange"

    android:background="@drawable/menu_bg_frame"

    android:padding="5.0dip"

    android:layout_width="fill_parent"

    android:layout_height="wrap_content"

    android:horizontalSpacing="10.0dip"

    android:verticalSpacing="3.0dip"

    android:stretchMode="columnWidth"

    android:columnWidth="60.0dip"

    android:numColumns="auto_fit"/>


</LinearLayout>

       主要類：

Java代碼

package com.yfz;


import android.app.Activity;
import android.app.AlertDialog;
import android.app.AlertDialog.Builder;
import android.content.Context;
import android.graphics.drawable.BitmapDrawable;
import android.os.Bundle;
import android.util.Log;
import android.view.ContextMenu;
import android.view.Gravity;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.view.ContextMenu.ContextMenuInfo;
import android.widget.BaseAdapter;
import android.widget.GridView;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.PopupWindow;
import android.widget.TextView;
import android.widget.LinearLayout.LayoutParams;

public class MenuTest extends Activity {

  private String TAG = this.getClass().getSimpleName();

  private int[] resArray = new int[] {
    R.drawable.icon_menu_addto, R.drawable.icon_menu_audioinfo,
    R.drawable.icon_menu_findlrc, R.drawable.icon_menu_scan
  };

  private String[] title = new String[]{
    "添加歌曲", "歌曲信息", "查找歌詞", "搜索歌詞"
  };

  private static boolean show_flag = false;
  private PopupWindow pw = null;

  /** Called when the activity is first created. */
  @Override
  public void onCreate(Bundle savedInstanceState) {
   super.onCreate(savedInstanceState);
   setContentView(R.layout.main);
  }

  @Override

  public boolean onCreateOptionsMenu(Menu menu) {
    Log.e(TAG, "------ onCreateOptionsMenu ------");
    //用AlertDialog彈出menu

//    View view = LayoutInflater.from(this).inflate(R.layout.menu, null);

//    GridView grid1 = (GridView)view.findViewById(R.id.menuGridChange);

//    grid1.setAdapter(new ImageAdapter(this));

//    Builder build = new AlertDialog.Builder(this);

//    build.setView(view);

//    build.show();

    LayoutInflater inflater = (LayoutInflater)this.getSystemService(Context.LAYOUT_INFLATER_SERVICE);

    View view = inflater.inflate(R.layout.menu, null);

    GridView grid1 = (GridView)view.findViewById(R.id.menuGridChange);

    grid1.setAdapter(new ImageAdapter(this));

    //用Popupwindow彈出menu
    pw = new PopupWindow(view,LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT);

    //NND, 第一個參數， 必須找個View
    pw.showAtLocation(findViewById(R.id.tv), Gravity.CENTER, 0, 300);

    return true;
  }

  @Override

  public boolean onOptionsItemSelected(MenuItem item) {
    return super.onOptionsItemSelected(item);
  }

  public class ImageAdapter extends BaseAdapter {
    private Context context;

    public ImageAdapter(Context context) {
      this.context = context;
    }

    @Override
    public int getCount() {
      return resArray.length;
    }

    @Override
    public Object getItem(int arg0) {
      return resArray[arg0];
    }

    @Override
    public long getItemId(int arg0) {
      return arg0;
    }

    @Override
    public View getView(int arg0, View arg1, ViewGroup arg2) {
      LinearLayout linear = new LinearLayout(context);

      LinearLayout.LayoutParams params = new LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT);

      linear.setOrientation(LinearLayout.VERTICAL);

      ImageView iv = new ImageView(context);

      iv.setImageBitmap(((BitmapDrawable)context.getResources().getDrawable(resArray[arg0])).getBitmap());

      LinearLayout.LayoutParams params2 = new LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT);

      params2.gravity=Gravity.CENTER;

      linear.addView(iv, params2);

      TextView tv = new TextView(context);

      tv.setText(title[arg0]);

      LinearLayout.LayoutParams params3 = new LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT);

      params3.gravity=Gravity.CENTER;

      linear.addView(tv, params3);
      return linear;
    }
  }
}

        到此，大家是不是覺得半透明Menu效果也是比較好實現的呢？可以根據自己的需要對此實例進行修改以求更美觀好用。

        以上就是對Android Menu 半透明效果的實現，後續繼續補充相關資料謝謝大家對本站的支持！
